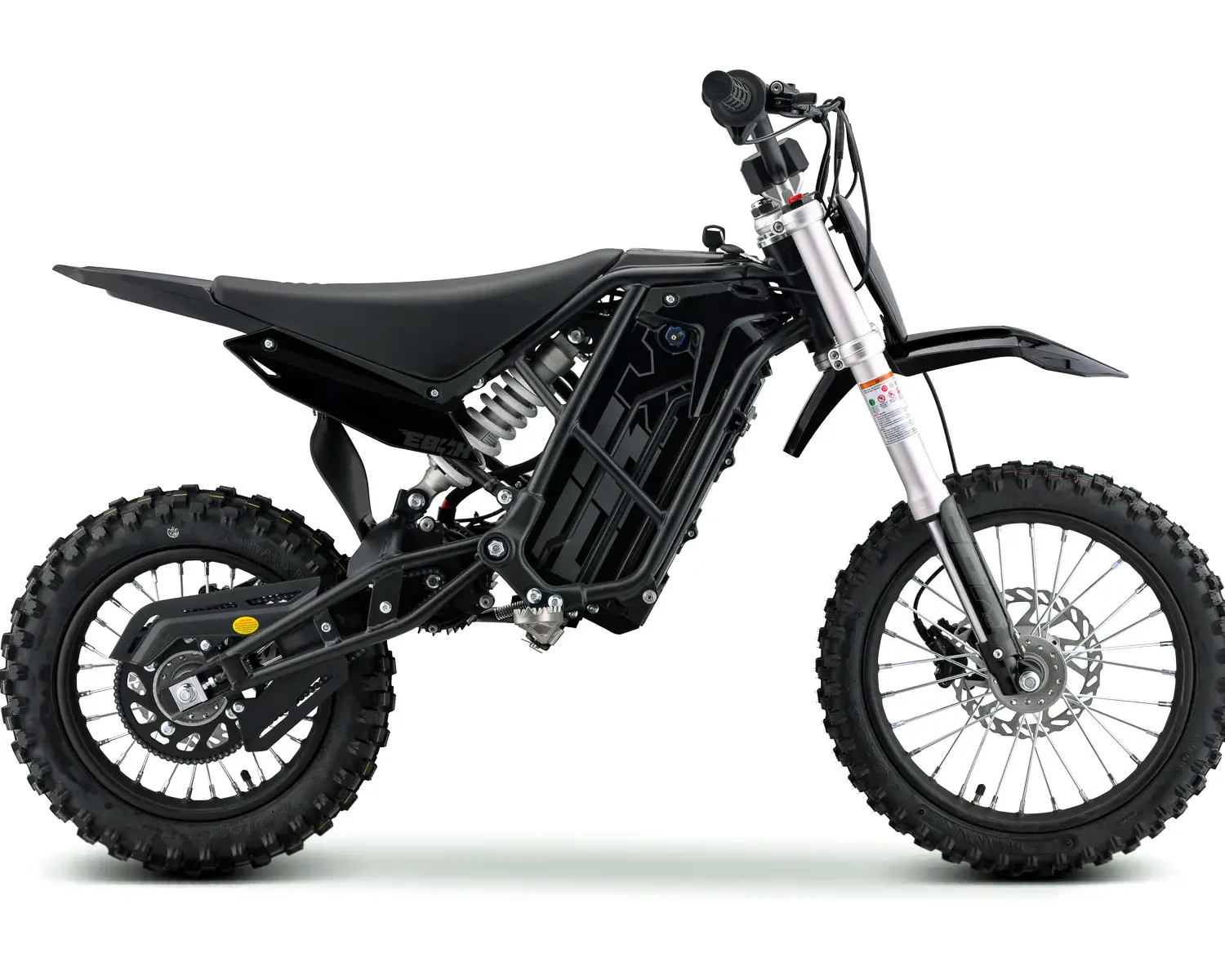

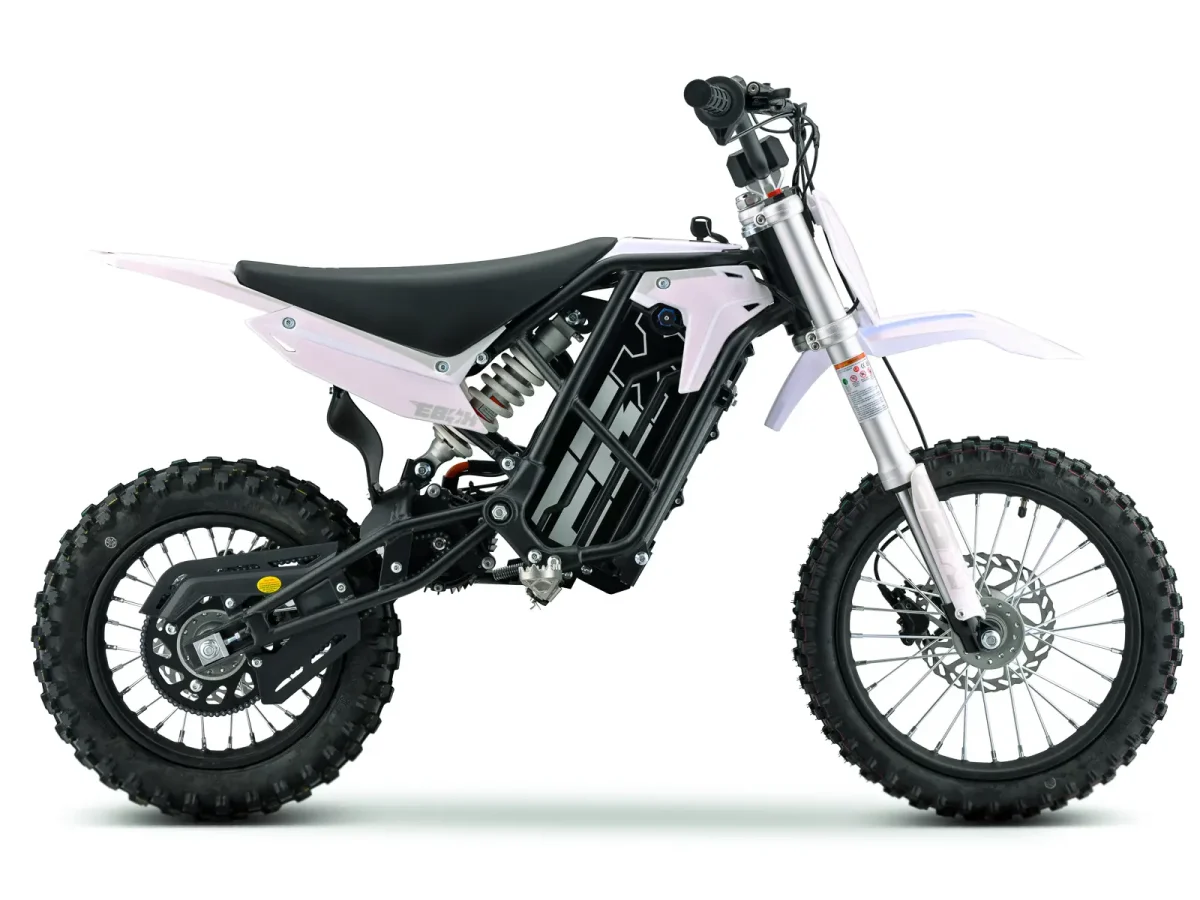

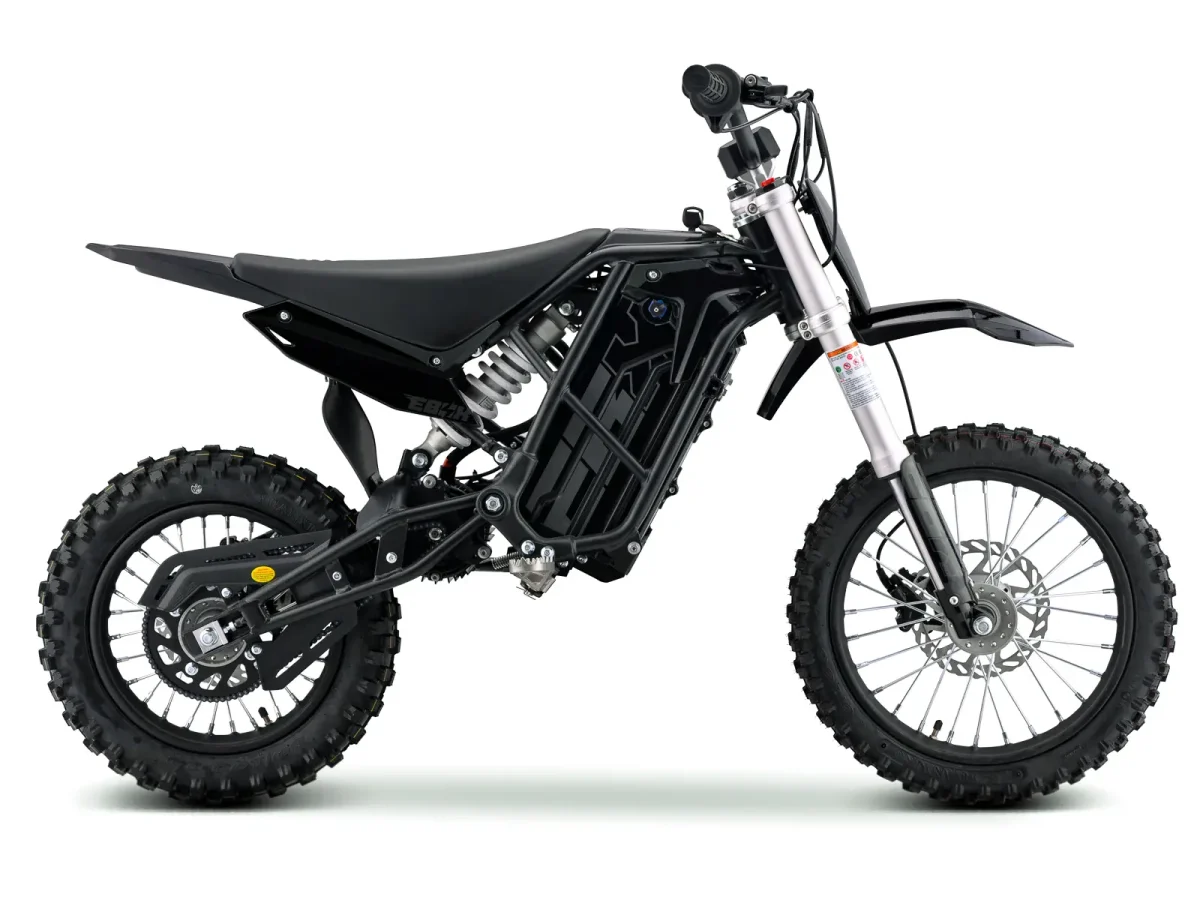

EBOX V3 60
Specification
Specification
| Specification | Details |
|---|---|
| Distributor | Stomp Distribution LTD |
| Manufacturer | EBOX |
| Model | EBOX V3 60 |
| Frame Design | Double Cradle V3 Wide Frame (183mm), Race Inspired Revised Geometry, Increased Fork Travel, Increased Pre-Load and Heavier Oil, Standard Footpeg |
| Bar Risers | Alloy Cast 36mm Rise Ø22.2 |
| Handlebar | 6061 T6 EBOX High Rise One Piece |
| Motor | 60V EBX PMSM Motor with Temperature Feedback and Encoder |
| Motor Voltage | 60V |
| Peak Power | 3.7KW (5hp) |
| Rated Power | 3.3KW |
| Max RPM | 7,500 |
| Battery | 60V 18.2Ah Battery (18650 Cells) with QS8 Connector |
| Controller | 80 Amp Fardriver Controller |
| Charger | AC 100–240V, Output 67.2V, 3A |
| Charge Time | 5–6 Hours |
| Range Per Charge | 21–25 Miles (35–40 Km) |
| Throttle | SURRON Style Full Twist |
| Display | TFT Odometer Display with 3 Speed Modes and Fault Code Analysis |
| External Adjustability | 3 Riding Modes |
| Front Suspension | 150mm Travel USD Forks |
| Wheel Size | 14 / 12 |
| Tyres | Front 60/100-14, Rear 80/100-12 Dirt Tyres |
| Front Brake | Hydraulic Disc (Right Lever), 180mm Rotor, 4 Bolt |
| Rear Brake | Hydraulic Disc (Left Lever), 180mm Rotor, 4 Bolt |
| Gearing | Front 10T, Rear 70T |
| Chain | 219H 108L |
| Top Speed | 45 mph (72 Km/h) |
| Waterproof Rating | IP54 |
| Connectors | Automotive Connectors with Sealed Wiring Harness |
| Wheelbase | 980 mm |
| Seat Height | 650 mm |
| Built to Race | B2R |
| Warranty | EBX 1 Year / 1000 Miles (whichever comes first) Powertrain Warranty + 6 Month Parts Warranty |
Size and Fit
Size and Fit
About the brand
Stomp
EBOX V3 60
Product details
EBOX V3 has finally arrived! You wanted more power, more punch, more range, more control and a higher top speed?? We listened to you, and we delivered all of that and more, featuring the brand new EBX powertrain!
Bigger batteries, a Fardriver 80A controller and a high power PMSM motor with encoder and temperature feedback with up to 6.3kW. There are no hall sensors to fail and the precise control of the encoder, provides laser sharp coil firing for increased efficiency and maximum performance.
Added to that we have included a colour TFT display with 3-speed modes and fault-finding capability. Our warranty has been increased to 1 year, (or 1000 miles) on all powertrain components (battery, controller, motor). What does this mean? Basically, peaking top speeds of up to 55 mph! New colourways, new tyres and all in the same mini package you can throw in the trunk of your car. .
