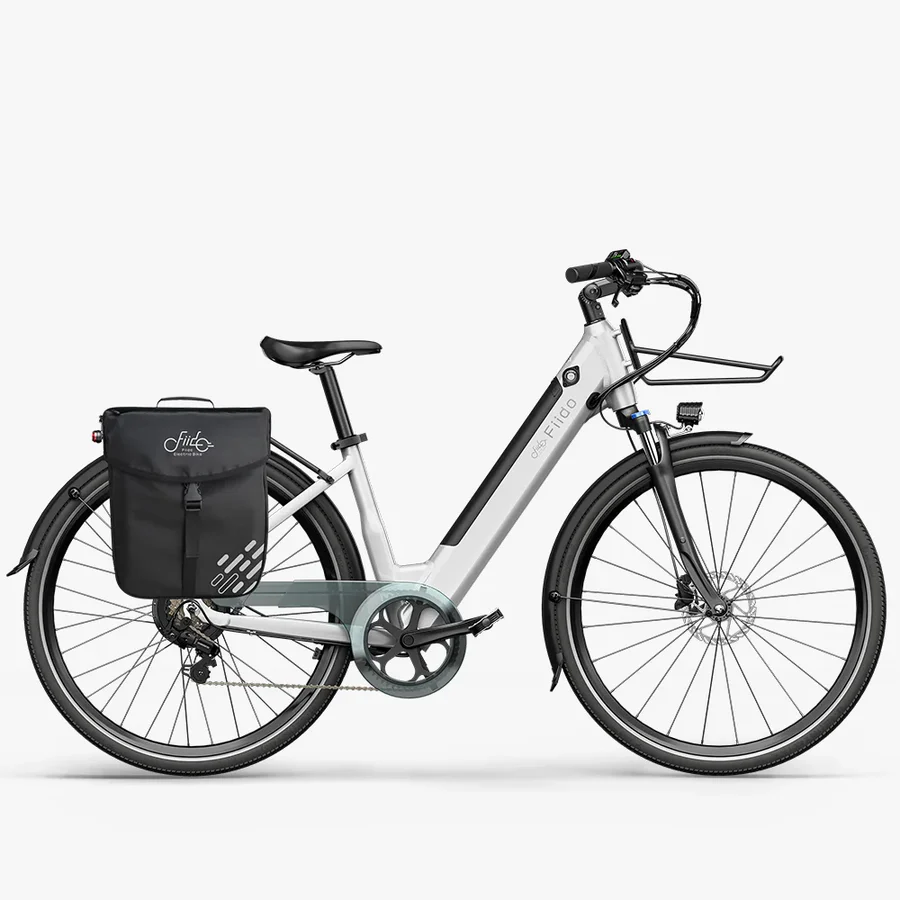

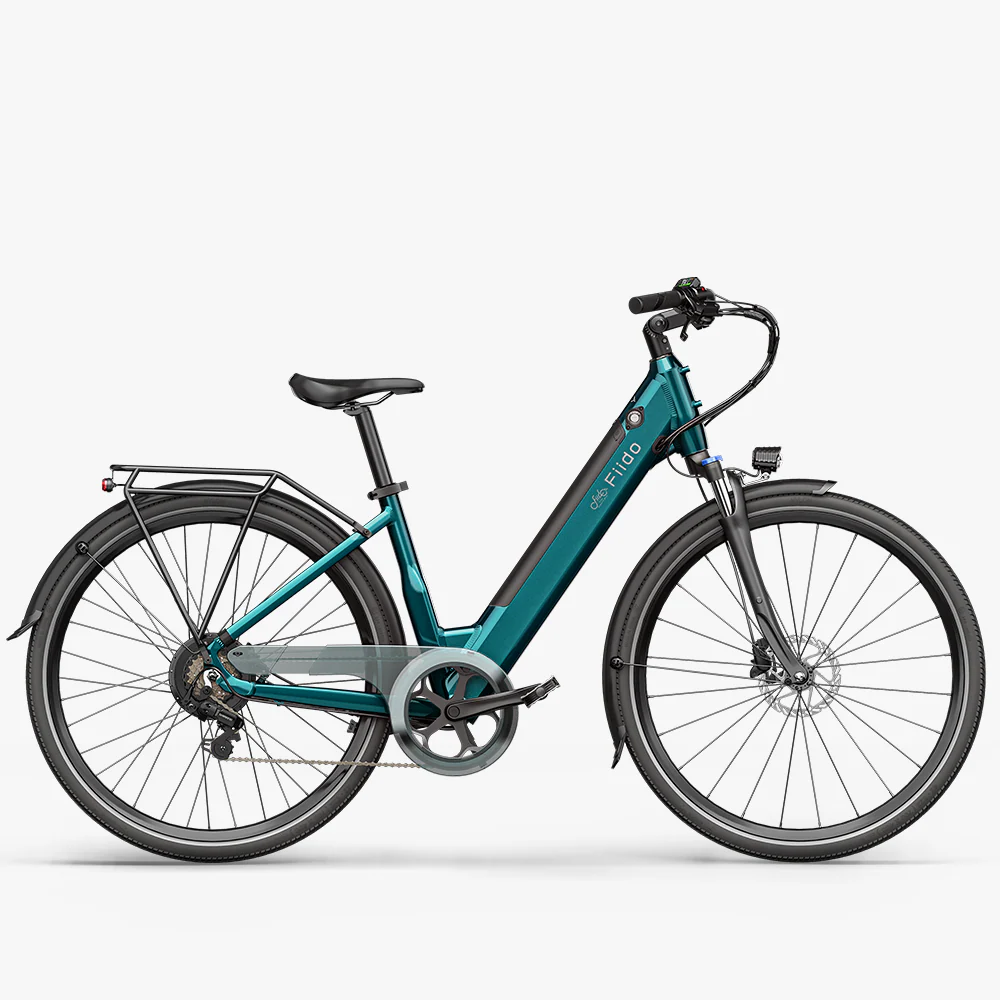

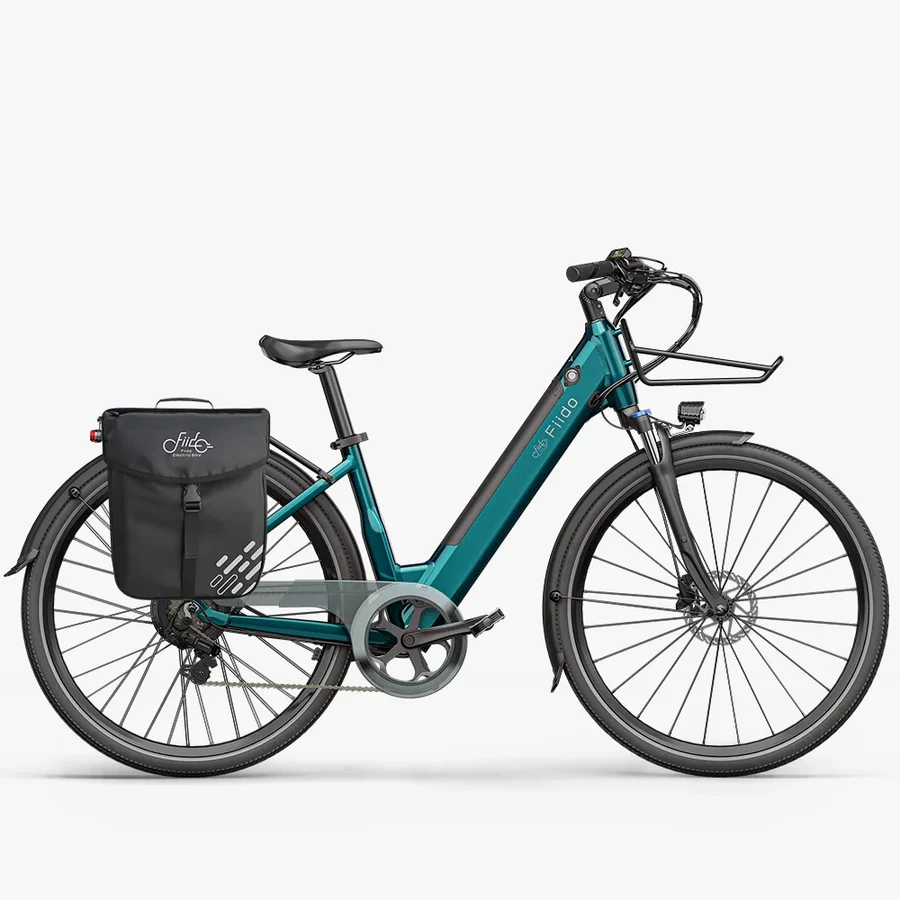

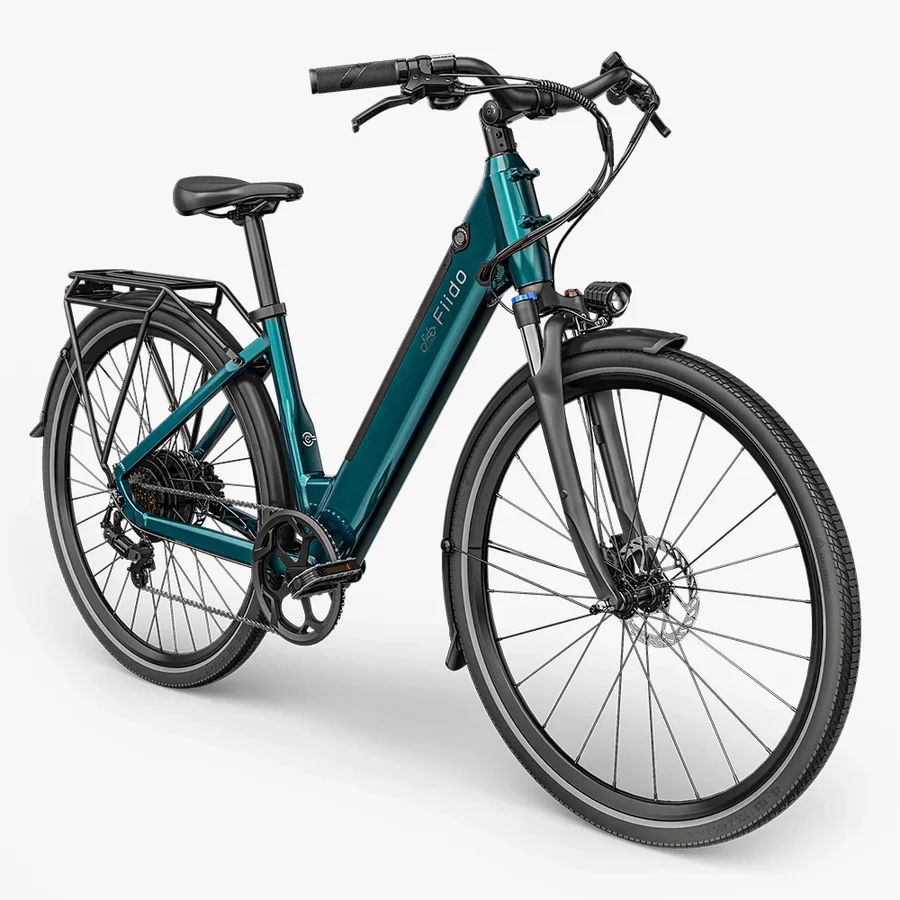

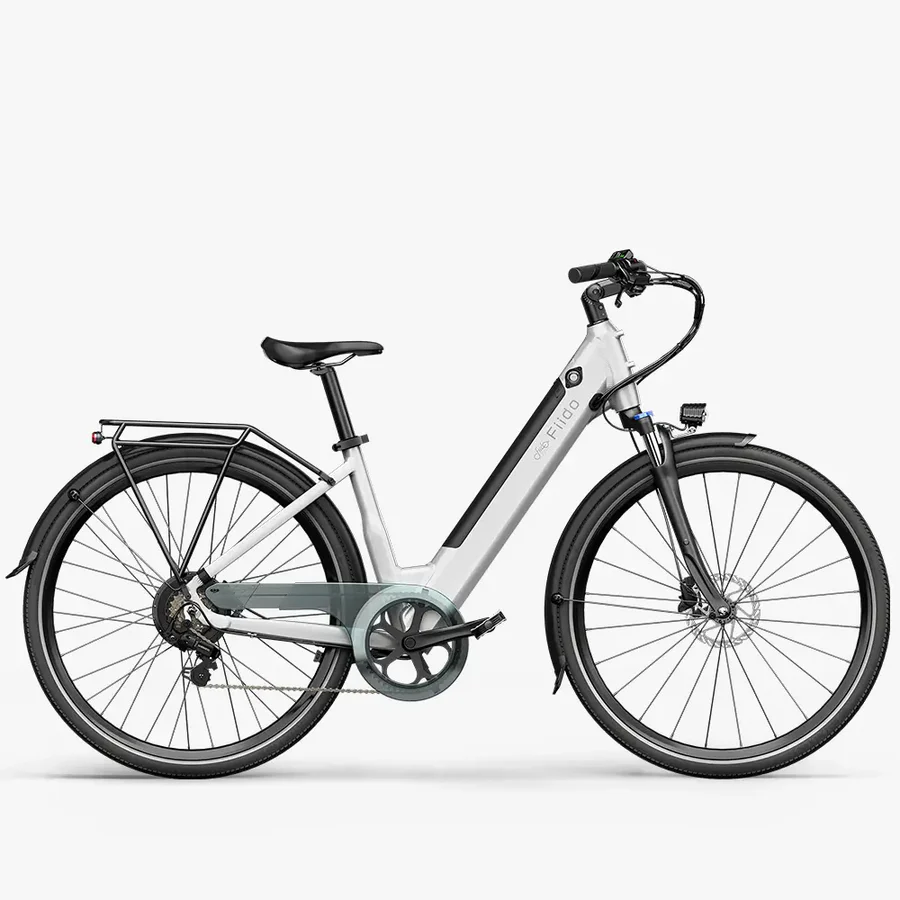

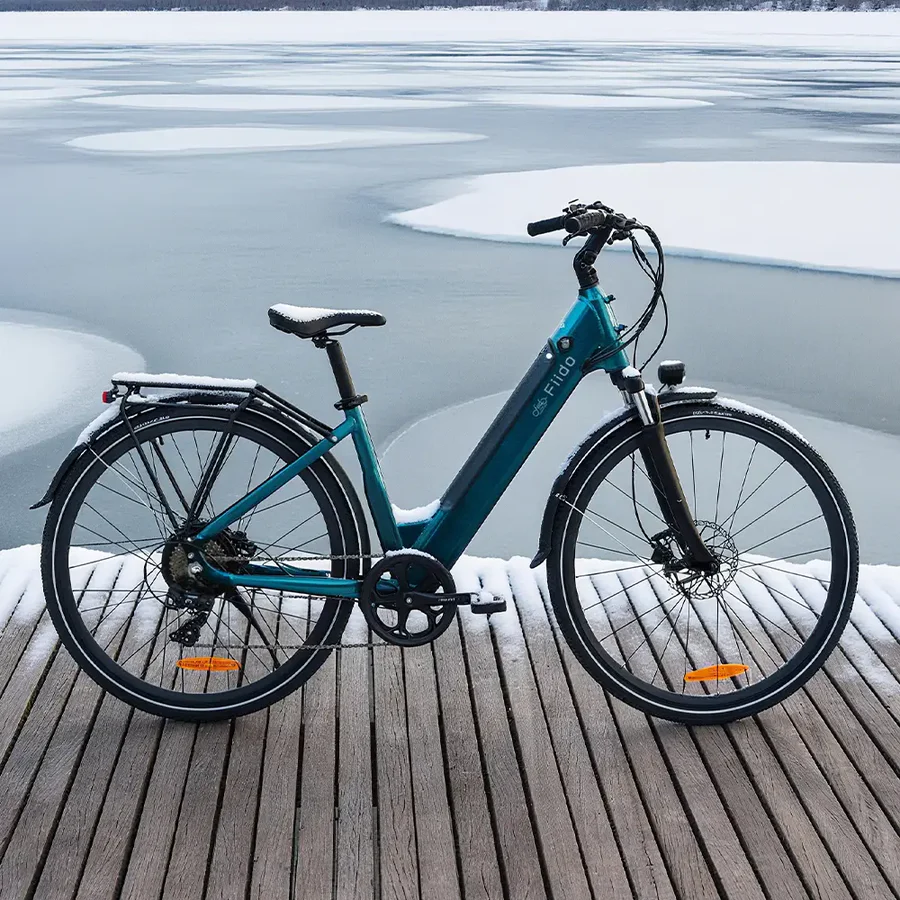

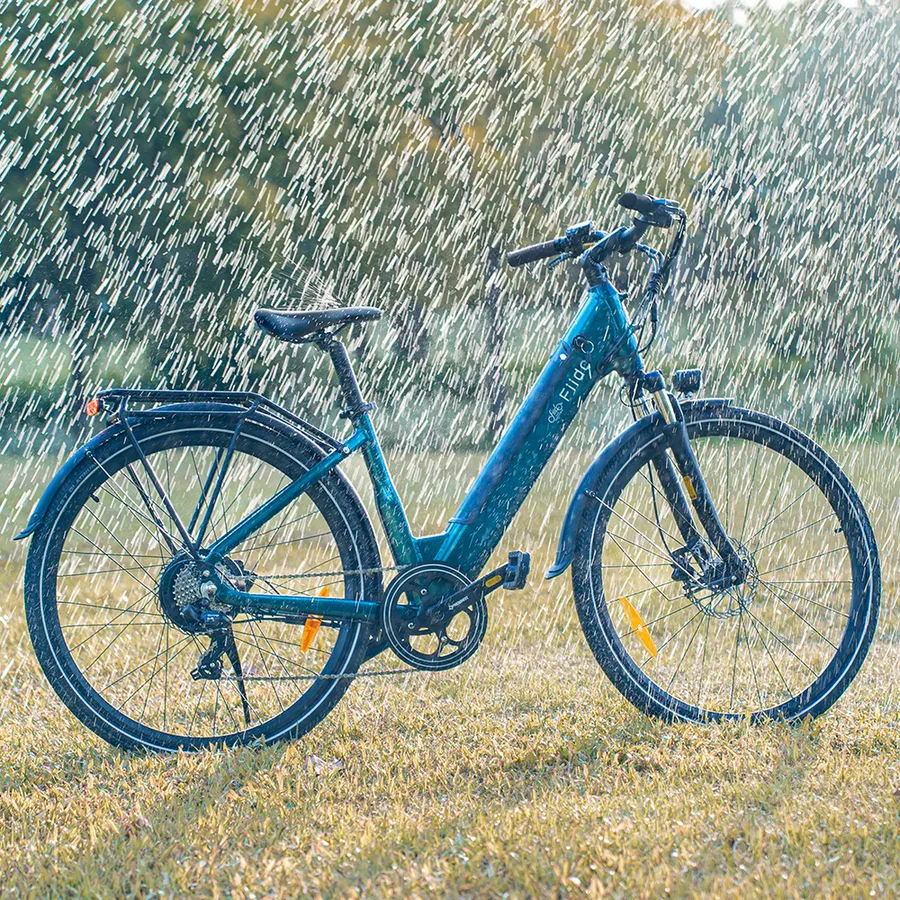

Fiido C11 City E-Bike
€1,050.00
29 people are viewing this right now
Specification
Specification
| C11 Specifications | |
|---|---|
| Model Name | C11 |
| Model Code | C11 |
| Net Weight | 24.5 kg |
| Payload | 120 kg |
| FRAMESET | |
| Frame | 700C aluminum alloy step-through city frame |
| Fork | Suspension fork (40mm travel) with 100mm opening width |
| Headset | Aluminum alloy bearing headset |
| E-SYSTEM | |
| Drive Unit | 250W |

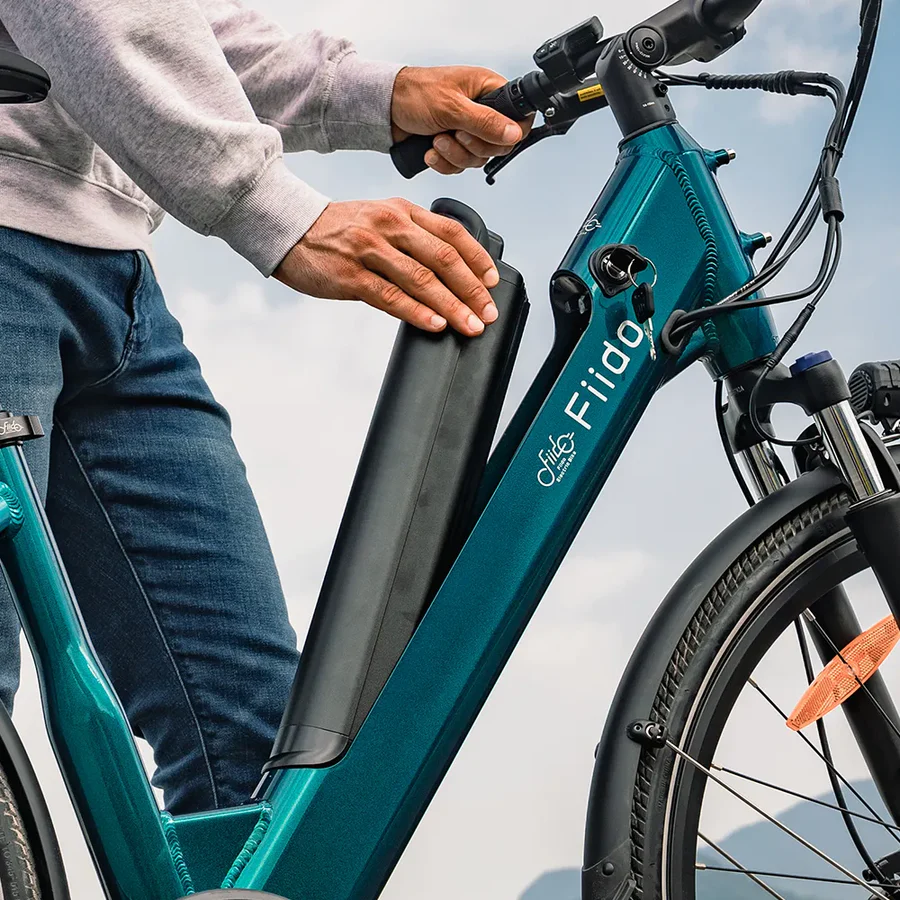

| Battery | DMEGC/EVE 499.2Wh |
| Charger | 48V 2A |

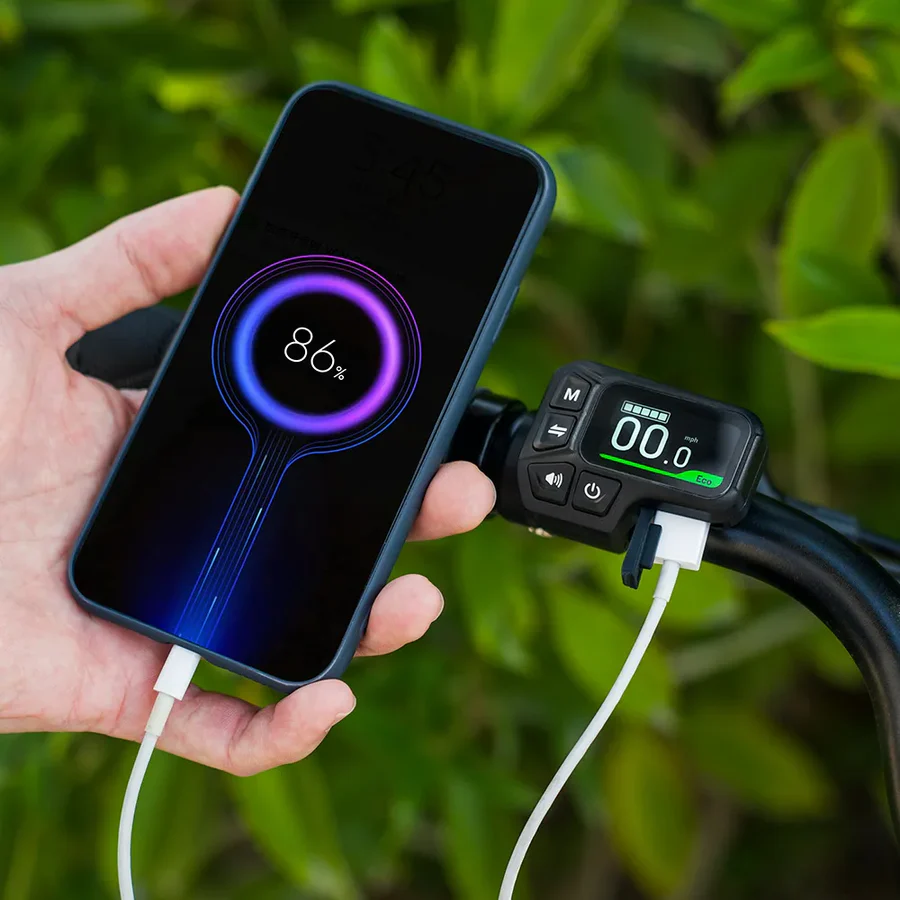

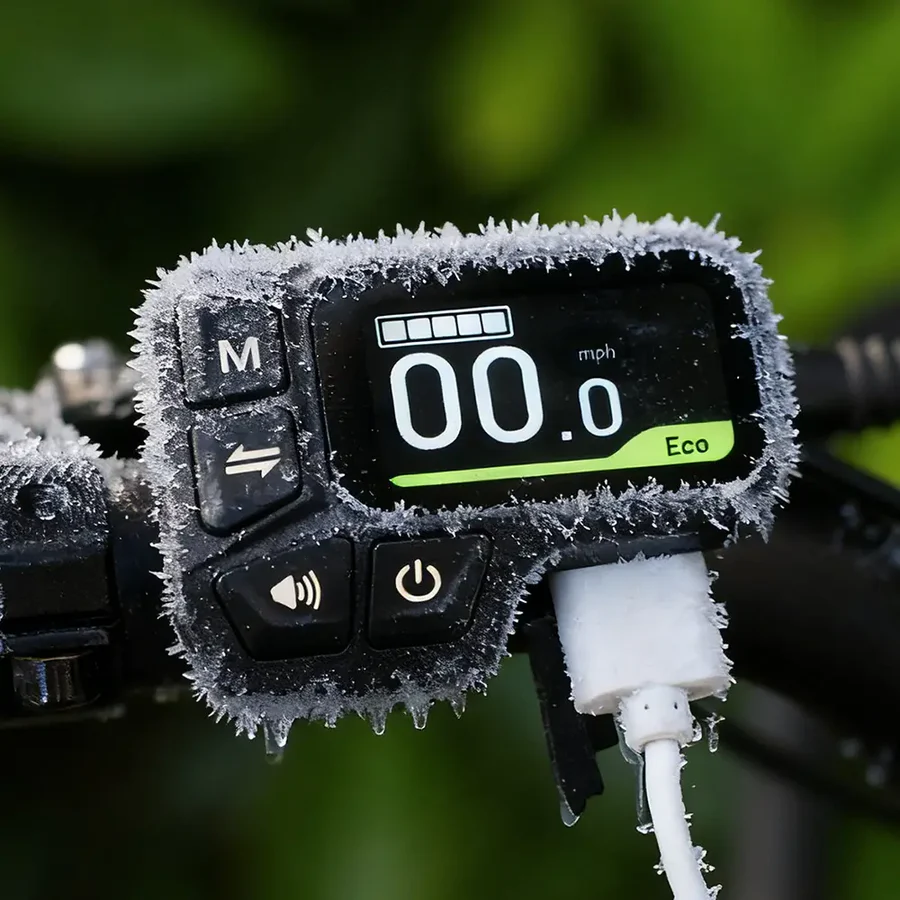

| Display | LCD 1.47 inch |
| Throttle | Yes (max speed 6 km/h) |
| DRIVETRAIN | |
| Rear Derailleur | SHIMANO TY300D |
| Shifters | 7-speed |
| Chain | KMC Z7 |
| Crank | Aluminum alloy 52T |
| Rear Cogs | 7-speed (14-28T) |
| Sensor | 12-magnet speed sensor |
| BRAKES | |
| Brakes | Dual-piston hydraulic disc brake with power cut-off |
| Brake Levers | Hydraulic disc brake |
| WHEELS | |
| Front Hub | Aluminum alloy double-bearing barrel axle hub (quick release front axle) |
| Rims | Aluminum alloy double-layer rim |
| Spokes | Stainless steel spokes with brass nipples |
| Tires | 700*40C |
| COMPONENTS | |
| Handlebar | Aluminum alloy (Length: 635mm, Max diameter: 31.8mm, Min diameter: 22.2mm) |
| Stem | Aluminum alloy adjustable stem |
| Grips | TPR non-slip handle grip (Length: about 130mm) |
| Saddle | VELO vacuum full-fit saddle |
| Seatpost | Aluminum alloy clamp head seatpost (Length: 400mm, Diameter: 33.9mm) |
Size and Fit
Size and Fit
| Model Name | C11 |
|---|---|
| Model Code | C11 |
| Weight | 24.5 kg |
| Payload | 120 kg |
| Frameset | |
| Frame | 700C aluminum alloy step-through city frame |
| Fork | Suspension fork (40mm travel) |
| Headset | Aluminum alloy bearing headset |
| E-System | |
| Motor | 250W |
| Battery | DMEGC / EVE 499.2Wh |
| Charger | 48V 2A |
| Display | 1.47" LCD |
| Throttle | Yes (6 km/h assist) |
| Drivetrain | |
| Rear Derailleur | Shimano TY300D |
| Shifter | 7-speed |
| Chain | KMC Z7 |
| Crank | 52T Aluminum |
| Cassette | 14–28T (7-speed) |
| Sensor | 12-magnet speed sensor |
| Brakes | |
| Brakes | Hydraulic disc (dual-piston, power cut-off) |
| Wheels | |
| Rims | Double-layer aluminum |
| Spokes | Stainless steel |
| Tires | 700 × 40C |
| Components | |
| Handlebar | 635mm (31.8mm clamp) |
| Stem | Adjustable aluminum |
| Saddle | VELO vacuum fit |
| Seatpost | 33.9mm aluminum (400mm) |
All measurements in mm unless stated.
| Rider Height | 155–195 cm |
|---|---|
| Wheel Size | 700 × 40C |
| Seat Tube | 450 |
| Seat Tube Angle | 73° |
| Head Tube | 190 |
| Head Angle | 70.5° |
| Top Tube | 605 |
| Wheelbase | 1115 |
| Reach | 398 |
| Stack | 676 |
| Total Length | 1820 |
| Handlebar Height | 1150 |
| Rear Rack Load | 25 kg |
