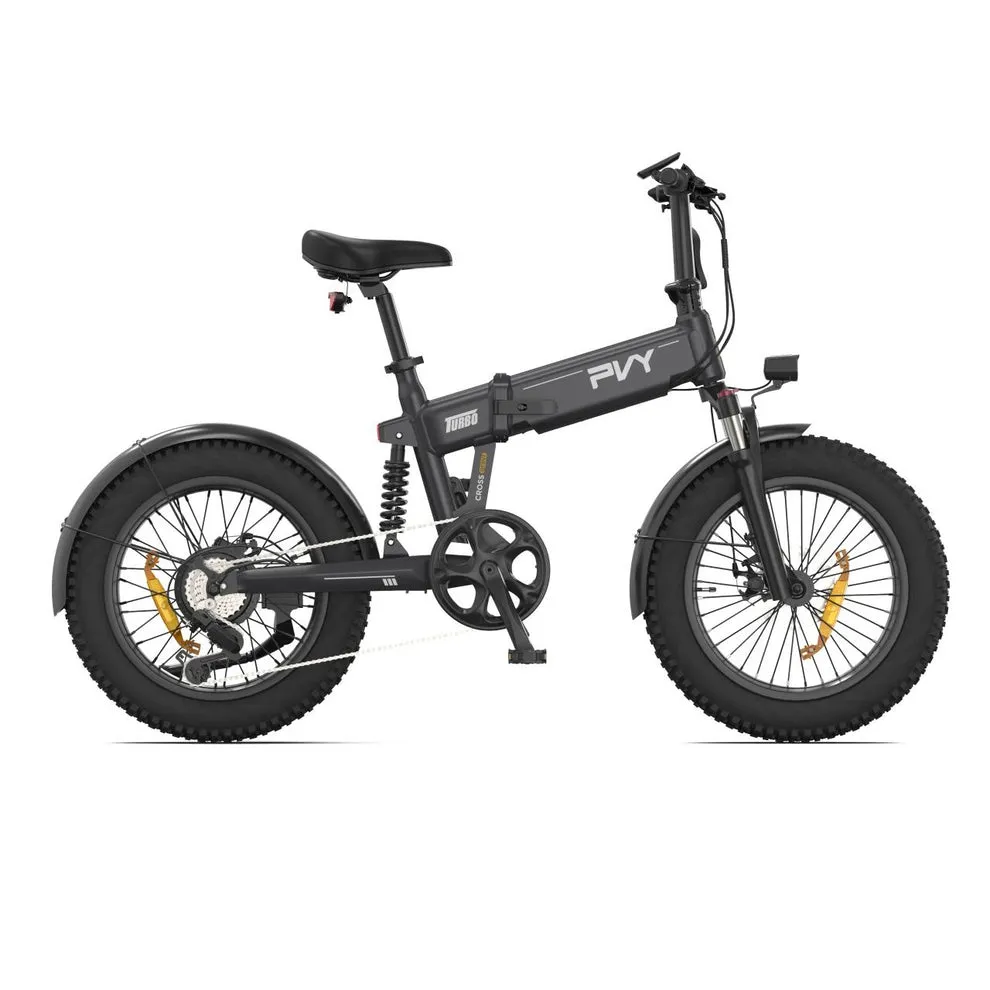

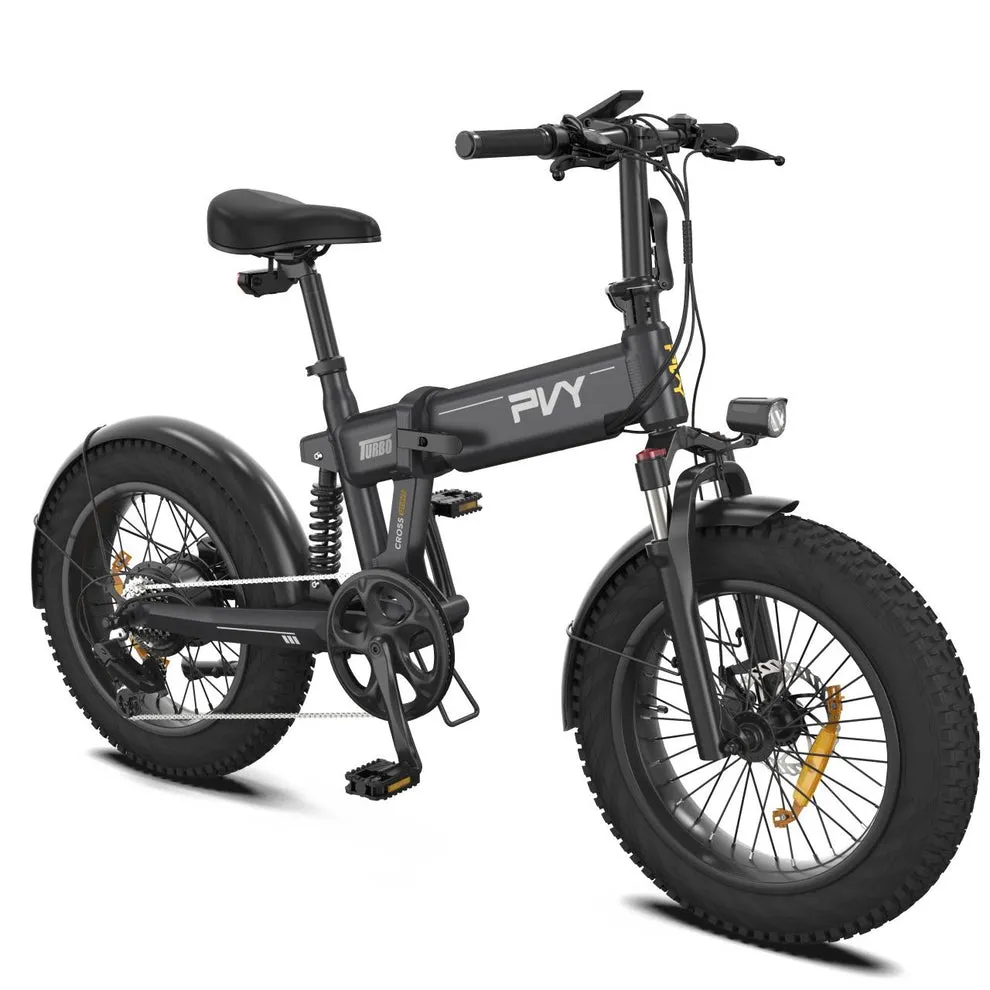

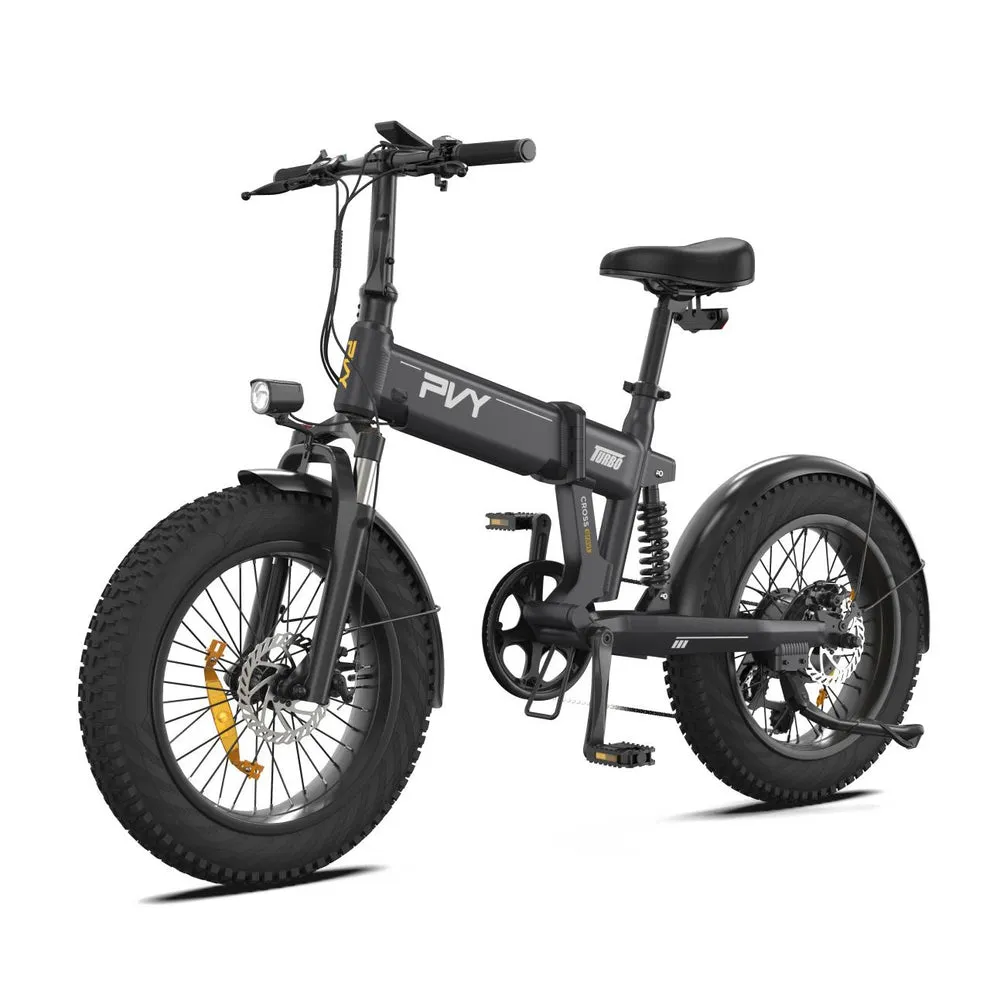

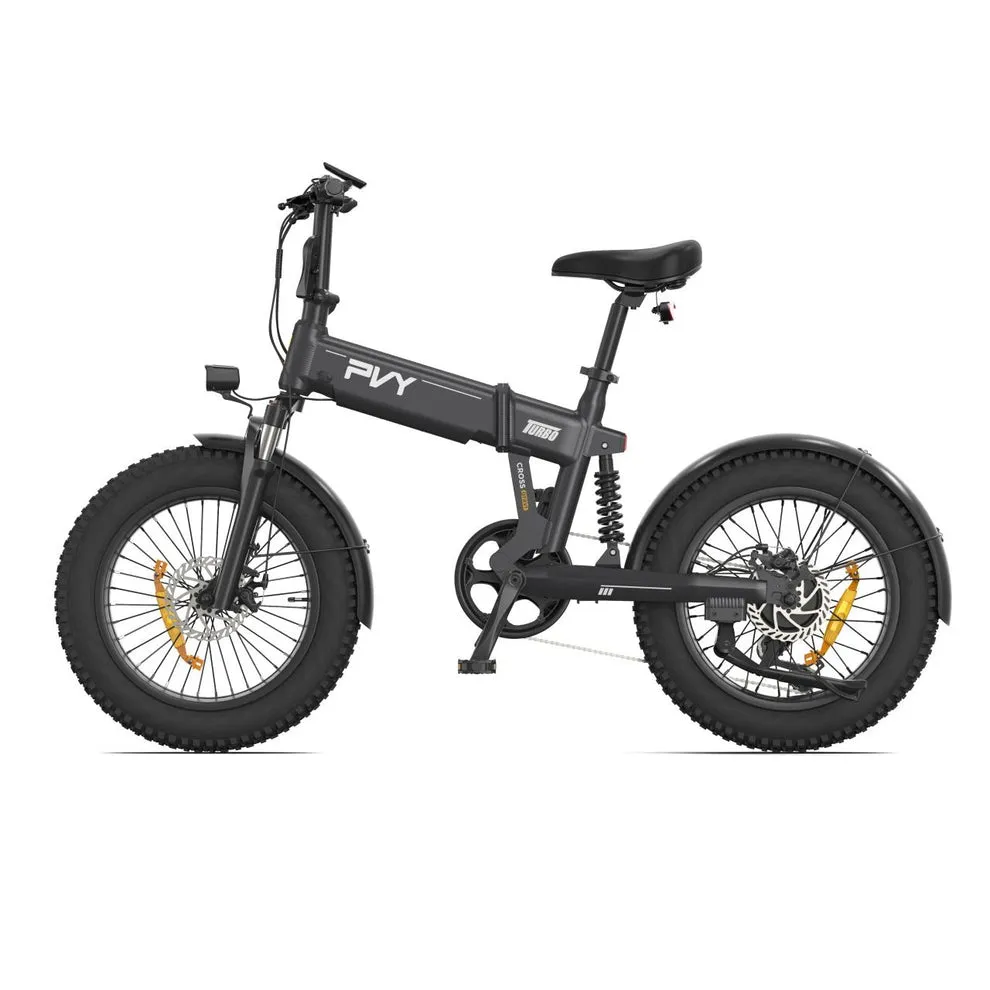

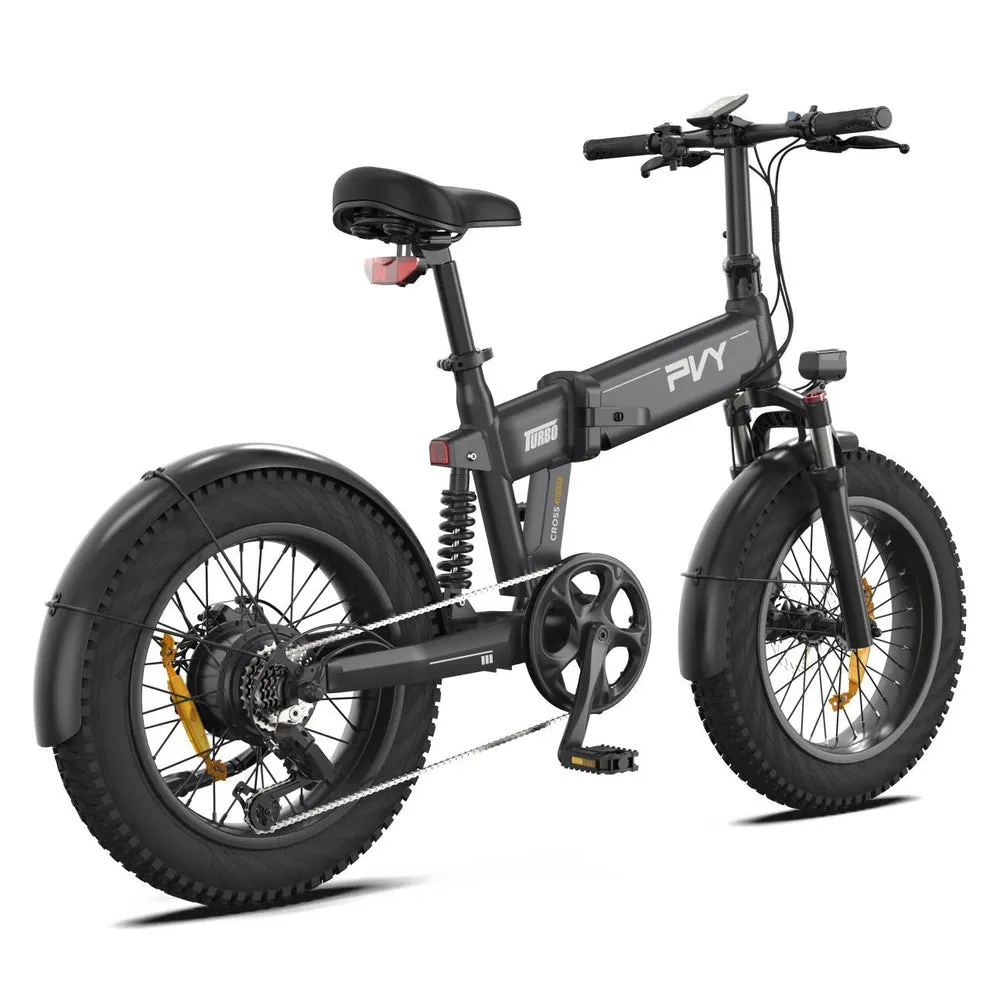

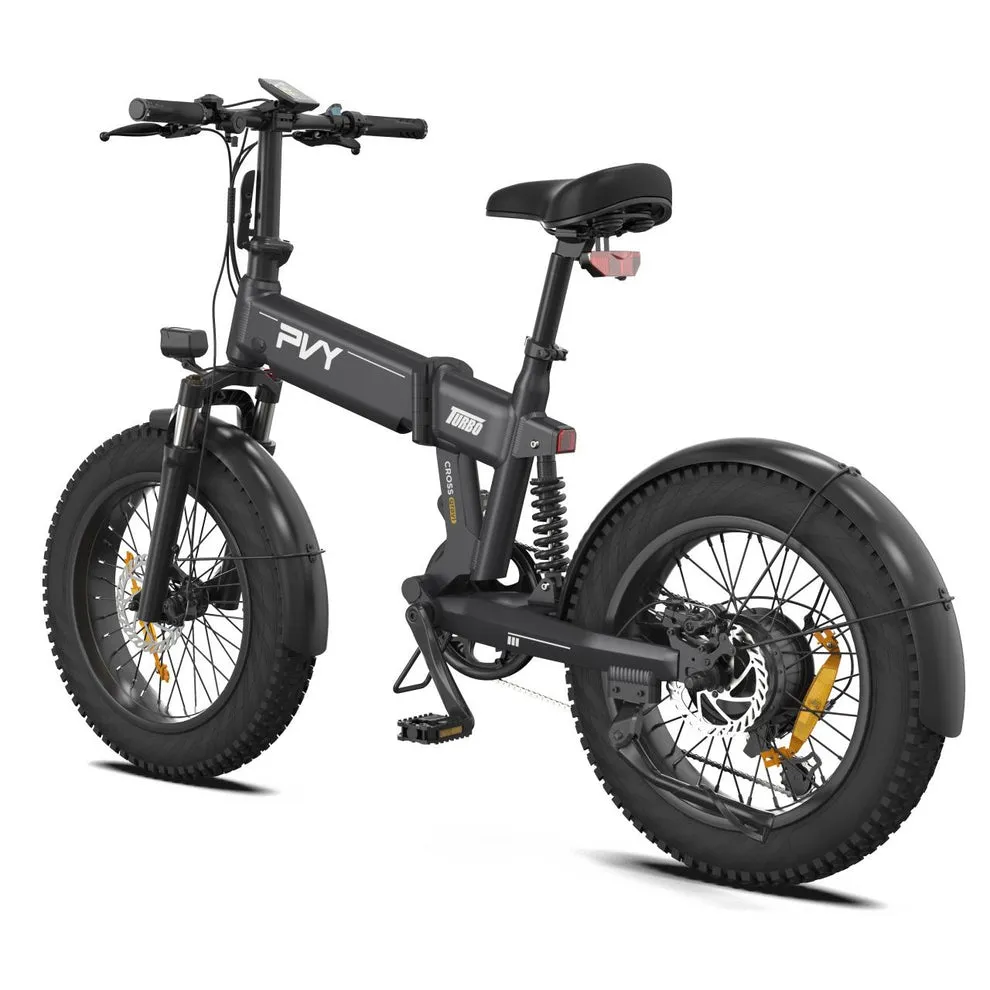

PVY TURBO – 250W Fat Tyre Hill Climb Beast
Specification
Specification
The PVY TURBO is built for riders who demand strength, torque, and all-terrain capability. Designed with rugged 20×4.0 inch fat tyres and delivering 80N.M of torque, this powerful electric bike is engineered to conquer steep hills and challenging terrain with confidence.
Powered by a 250W permanent magnet motor (unlockable up to 750W), the Turbo provides rapid acceleration and strong climbing performance while maintaining smooth and controlled power delivery. Whether you’re navigating city streets, gravel paths, or inclines up to 15°–20°, this bike ensures an exciting and stable ride.
At the heart of the PVY TURBO is a premium 48V 13Ah lithium battery, delivering up to 100 km range on a single charge. With efficient energy management, it offers up to 30% longer battery life compared to similar models, reducing charging frequency and enhancing convenience. One full charge can comfortably support a full week of commuting for most riders.
The upgraded 6061 aluminum frame provides durability without unnecessary weight, while the lockable shock-absorbing fork improves ride comfort across uneven surfaces. Mechanical disc brakes ensure reliable stopping power, and the SHIMANO 7-speed drivetrain allows smooth gear transitions for varied terrain.
With a net weight of 29.5 kg and a maximum load capacity of 150 kg, the PVY TURBO balances robustness and practicality. Additional features include an HD LCD display, 1200-lumen IPX5 waterproof headlight, integrated taillight, cadence sensor, half-twist throttle, and 0–3 levels of pedal assist.
Finished in Dark Grey and CE certified, the PVY TURBO delivers powerful hill-climbing performance, extended range, and rugged fat tyre stability—making every ride smooth, controlled, and exhilarating.
🔹 General
-
Certification: CE
-
Colour: Dark Grey
-
Max Speed: 25 km/h
-
Max Range: Up to 100 km
-
Climbing Ability: 15°–20°
-
Working Temperature: -10°C to 50°C
-
Waterproof Rating: IPX5
⚡ Motor & Performance
-
Motor Type: Permanent Magnet Motor
-
Rated Power: 250W
-
Unlockable Power: Up to 750W
-
Torque: 80 N.M
-
Throttle: Yes (Half Twist Throttle)
-
Pedal Assist: 0–3 Levels
🔋 Battery & Charging
-

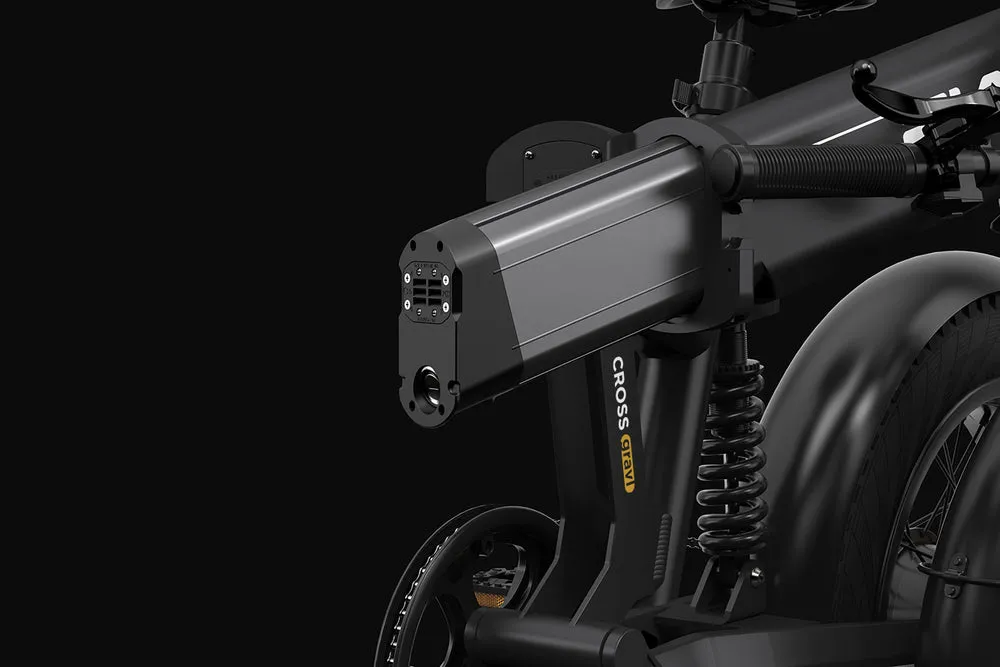

Battery: 48V 13Ah Lithium-Ion
-
Maximum Range: Up to 100 km
-
Battery Efficiency: ~30% longer battery life vs similar models
🔧 Frameset
-

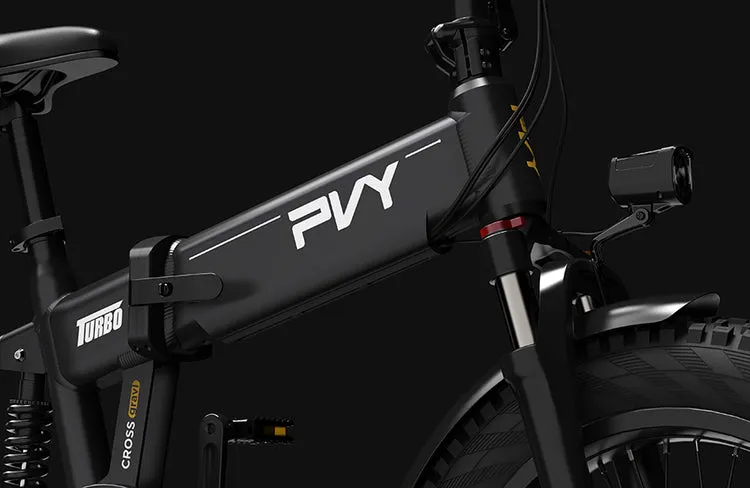

Frame Material: Upgraded 6061 Aluminum Alloy
-

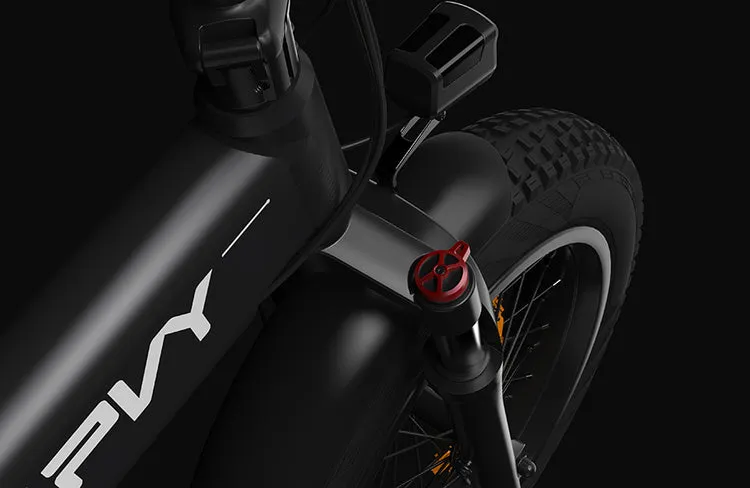

Fork: Lockable Shock Absorbing Fork
🛑 Brake System
-

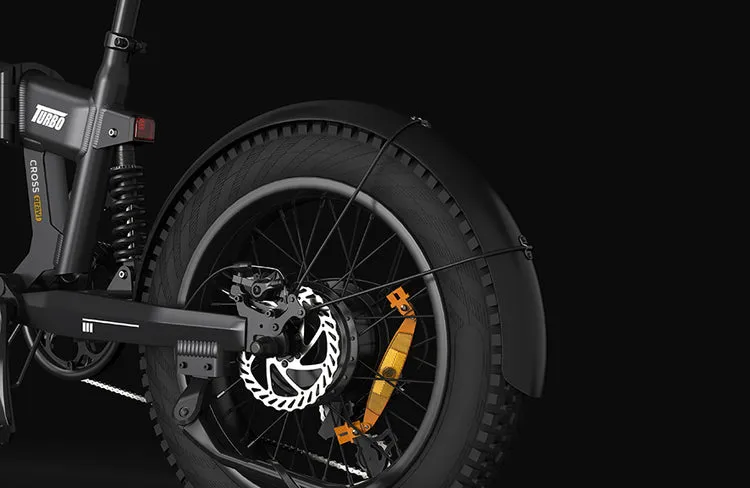

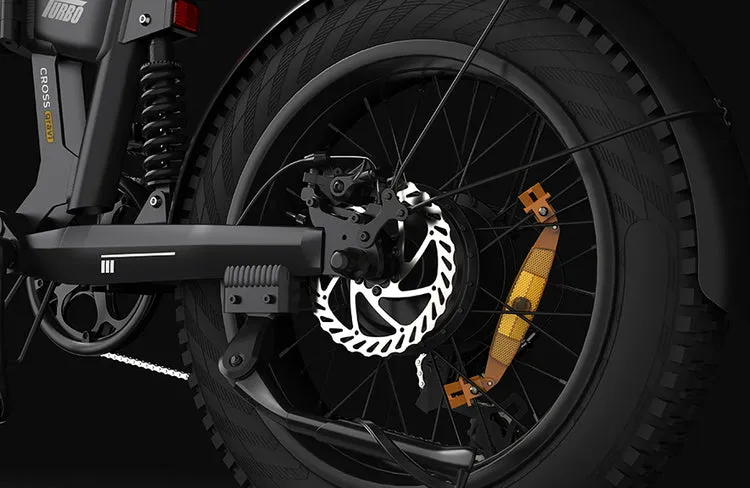

Brakes: Mechanical Disc Brakes
-
Brake Levers: Aluminum Alloy
🚴 Drivetrain
-

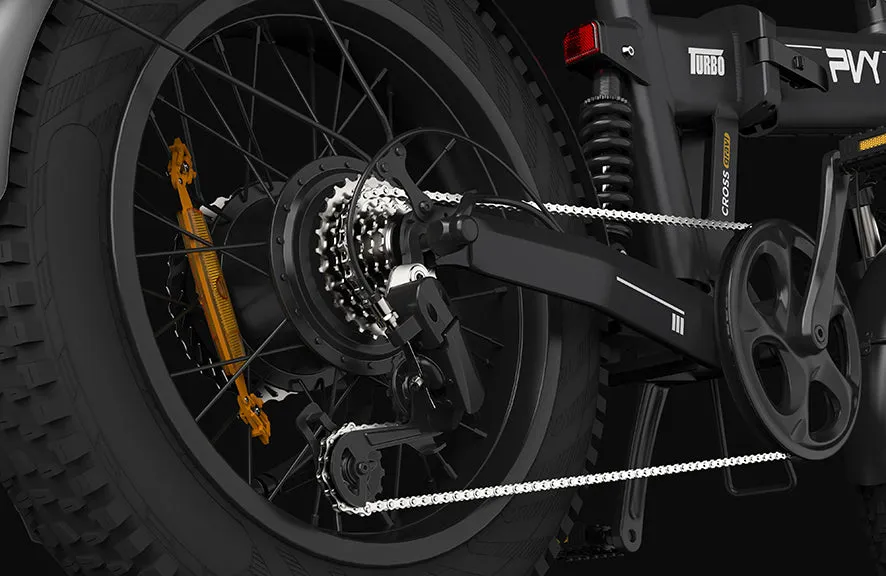

Rear Derailleur: SHIMANO 7-Speed
-

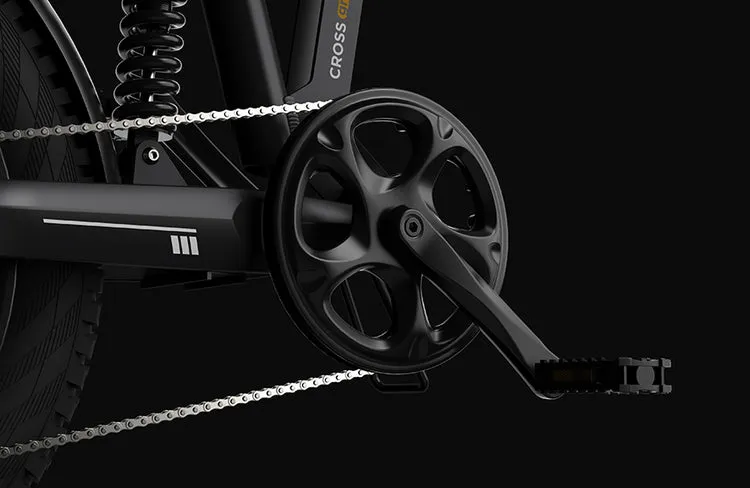

Chainrings: Pro Wheel 48T
-
Crankset: 170 mm
-
Sensor: Cadence Sensor
-

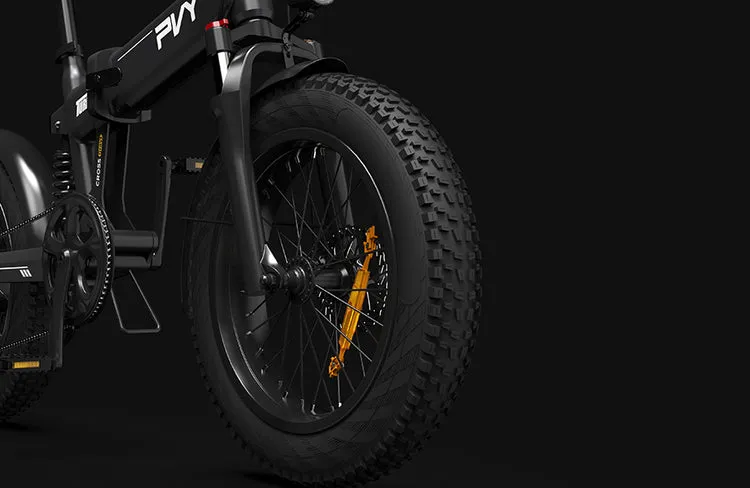

Tyre Size: 20 × 4.0 Inch Fat Tires
💡 Electronics & Lighting
-

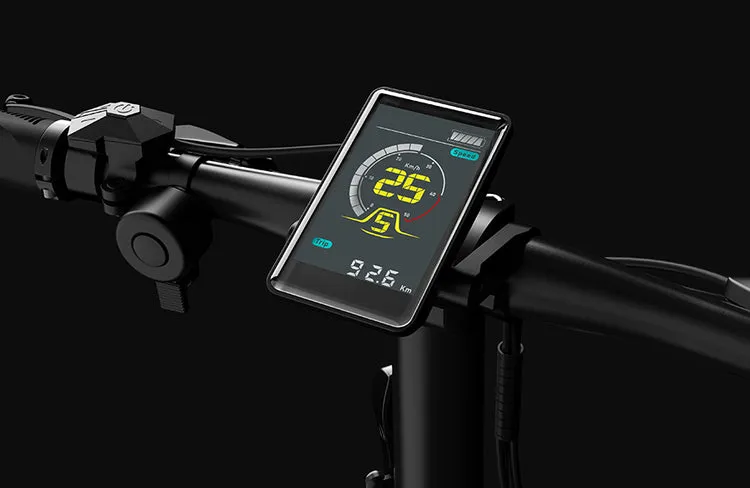

Display: HD LCD Display
-

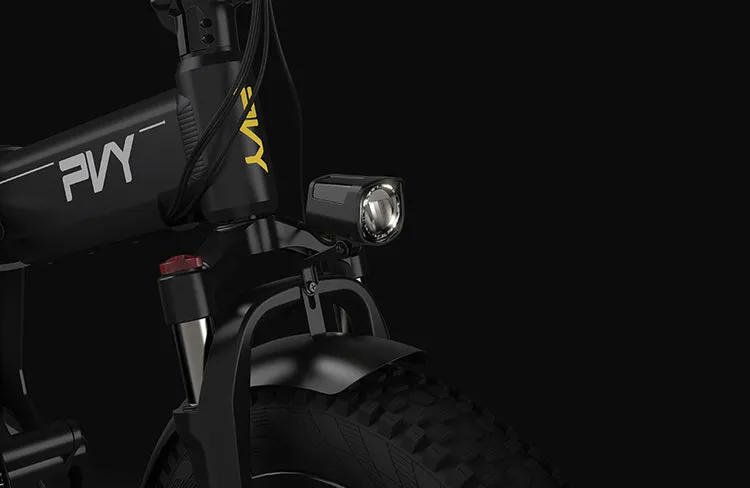

Headlight: 1200 Lumen (IPX5 Waterproof)
-

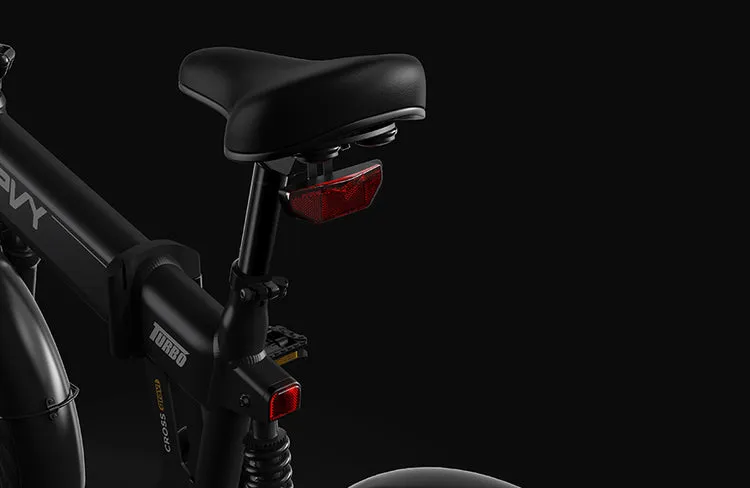

Taillight: Integrated Rear Light
🧰 Support Components
-
Pedals: Plastic Foldable Pedals
-
Fenders: Iron
⚖️ Weight & Load
-
Net Weight: 29.5 kg
-
Maximum Load Capacity: 150 kg
Size and Fit
Size and Fit

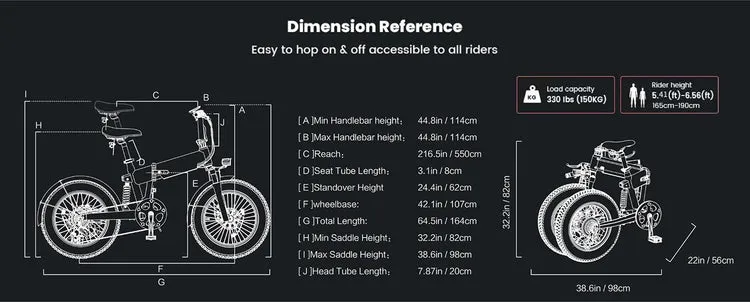

📏 Bike Dimensions
-
Total Length: ~1850 mm
-
Handlebar Width: ~700 mm
-
Seat Height (Adjustable): ~900–1050 mm
-
Wheelbase: ~1150 mm
(Exact dimensions may vary slightly based on production batch.)
🚴 Rider Fit Guidance
Ideal Rider Height
-
Best suited for riders between 160 cm – 195 cm
-
Adjustable saddle and handlebars accommodate a variety of body sizes.
Riding Posture
-
Upright and Comfortable: Designed for urban commutes and off-road confidence.
-

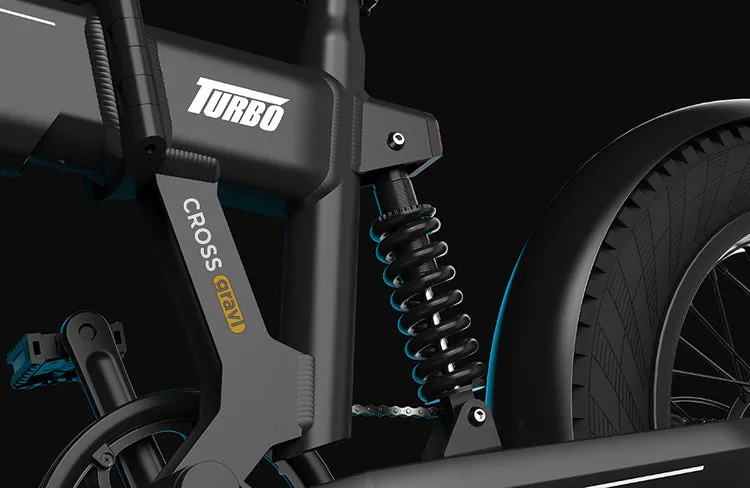

Shock Absorbing Fork: Enhances comfort across rough terrain.
-
20×4.0” Fat Tires: Offer greater stability and cushioning, ideal for trails, sand, gravel, and road surfaces.
🦵 Stand-Over & Clearance
-
Stand-Over Height: Moderate (comfortable for most adult riders)
-
Clearance: High enough for diverse terrain without compromising balance
🧍 Fit Summary
| Rider Attribute | Recommended |
|---|---|
| Height Range | 160 cm – 195 cm |
| Weight Capacity | Up to 150 kg |
| Terrain Suitability | Urban, trails, sand, gravel |
| Riding Position | Upright, relaxed |
About the brand
Pvy Libon
PVY TURBO – 250W Fat Tyre Hill Climb Beast
Product details
The PVY TURBO is built for riders who demand strength, torque, and all-terrain capability. Designed with rugged 20×4.0 inch fat tyres and delivering 80N.M of torque, this powerful electric bike is engineered to conquer steep hills and challenging terrain with confidence.
Powered by a 250W permanent magnet motor (unlockable up to 750W), the Turbo provides rapid acceleration and strong climbing performance while maintaining smooth and controlled power delivery. Whether you’re navigating city streets, gravel paths, or inclines up to 15°–20°, this bike ensures an exciting and stable ride.
At the heart of the PVY TURBO is a premium 48V 13Ah lithium battery, delivering up to 100 km range on a single charge. With efficient energy management, it offers up to 30% longer battery life compared to similar models, reducing charging frequency and enhancing convenience. One full charge can comfortably support a full week of commuting for most riders.
The upgraded 6061 aluminum frame provides durability without unnecessary weight, while the lockable shock-absorbing fork improves ride comfort across uneven surfaces. Mechanical disc brakes ensure reliable stopping power, and the SHIMANO 7-speed drivetrain allows smooth gear transitions for varied terrain.
With a net weight of 29.5 kg and a maximum load capacity of 150 kg, the PVY TURBO balances robustness and practicality. Additional features include an HD LCD display, 1200-lumen IPX5 waterproof headlight, integrated taillight, cadence sensor, half-twist throttle, and 0–3 levels of pedal assist.
Finished in Dark Grey and CE certified, the PVY TURBO delivers powerful hill-climbing performance, extended range, and rugged fat tyre stability—making every ride smooth, controlled, and exhilarating.
