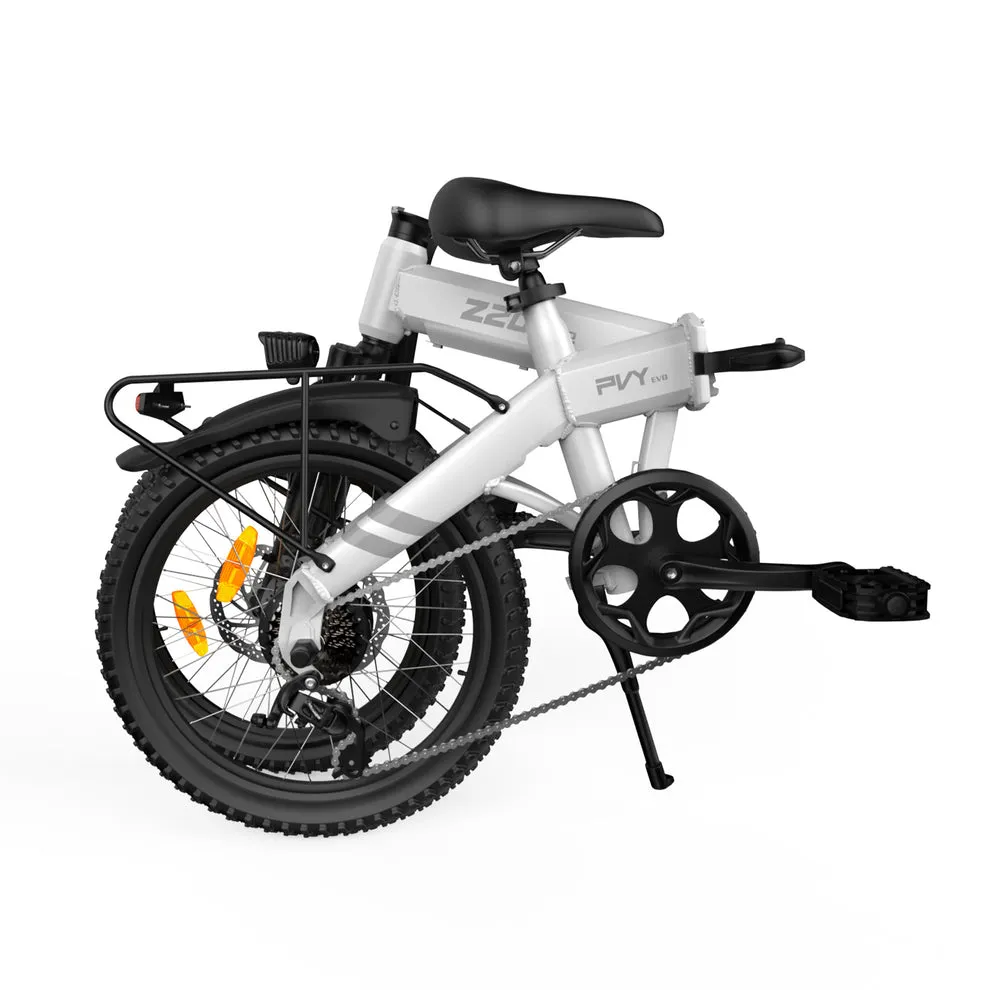

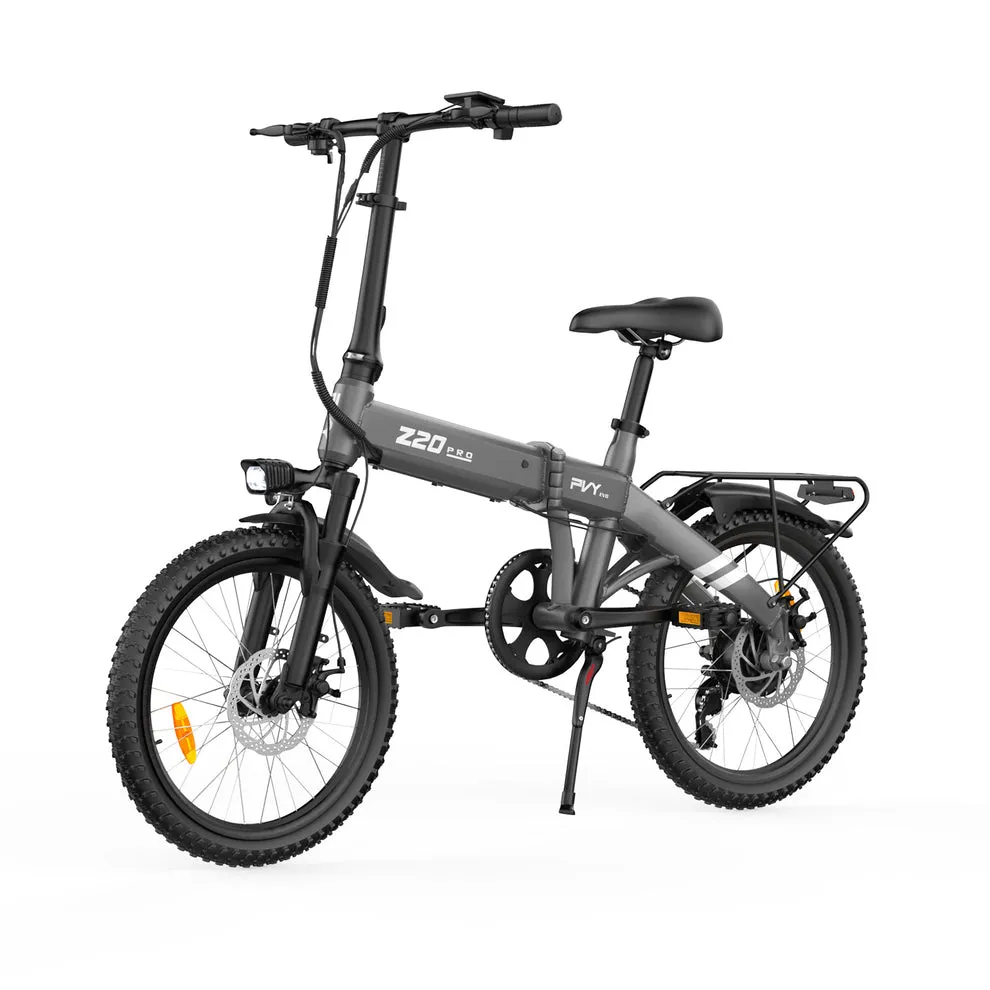

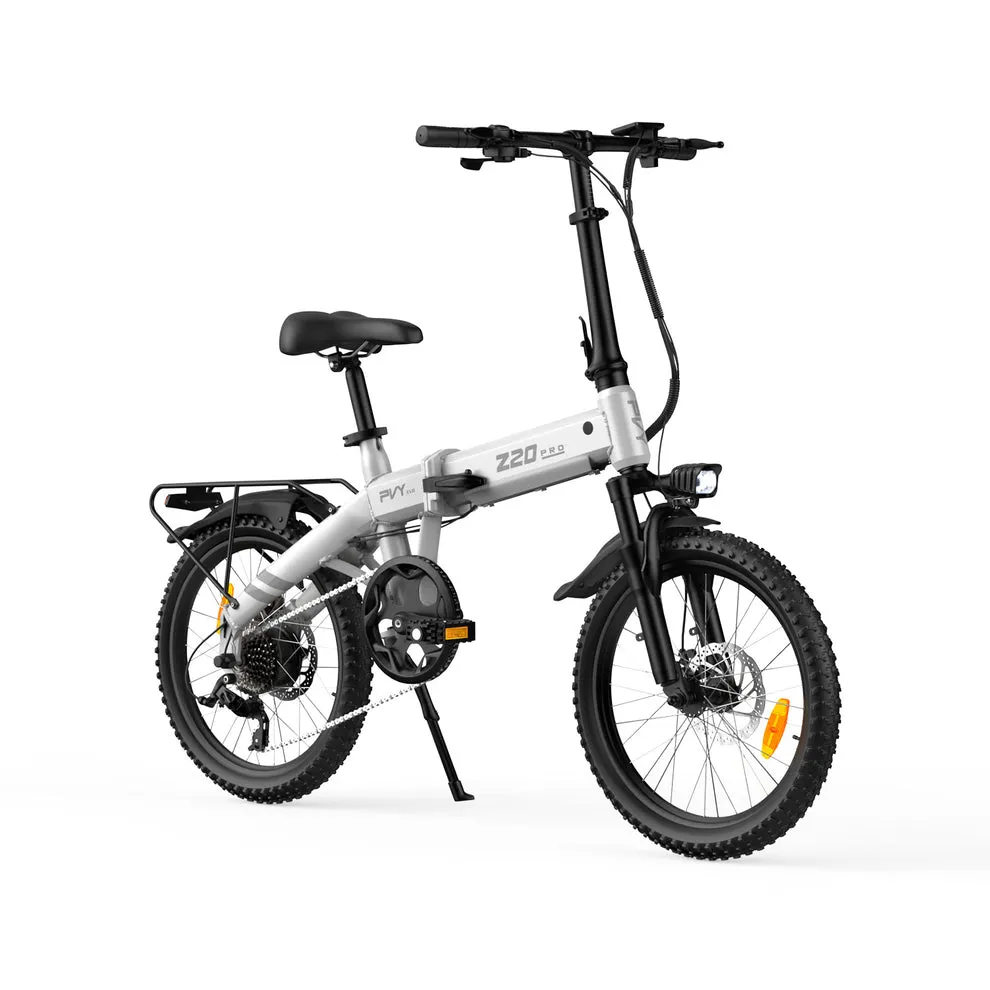

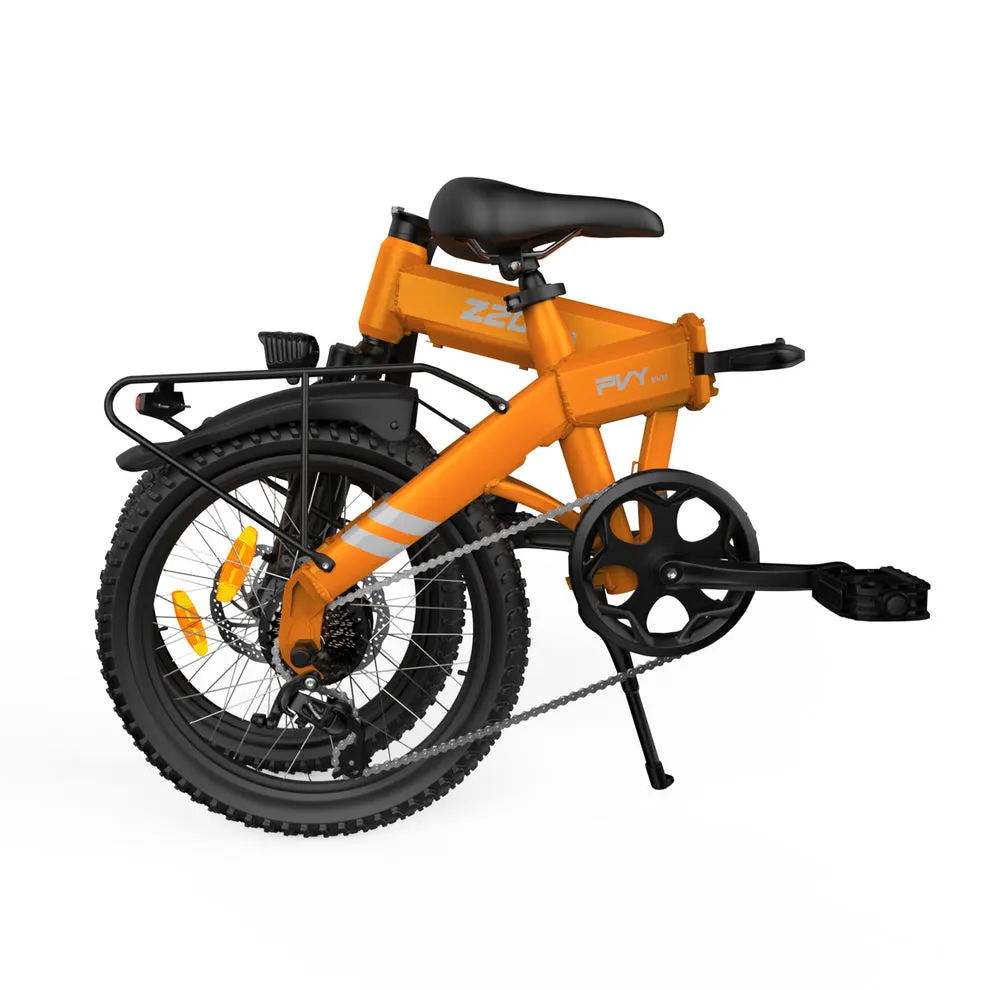

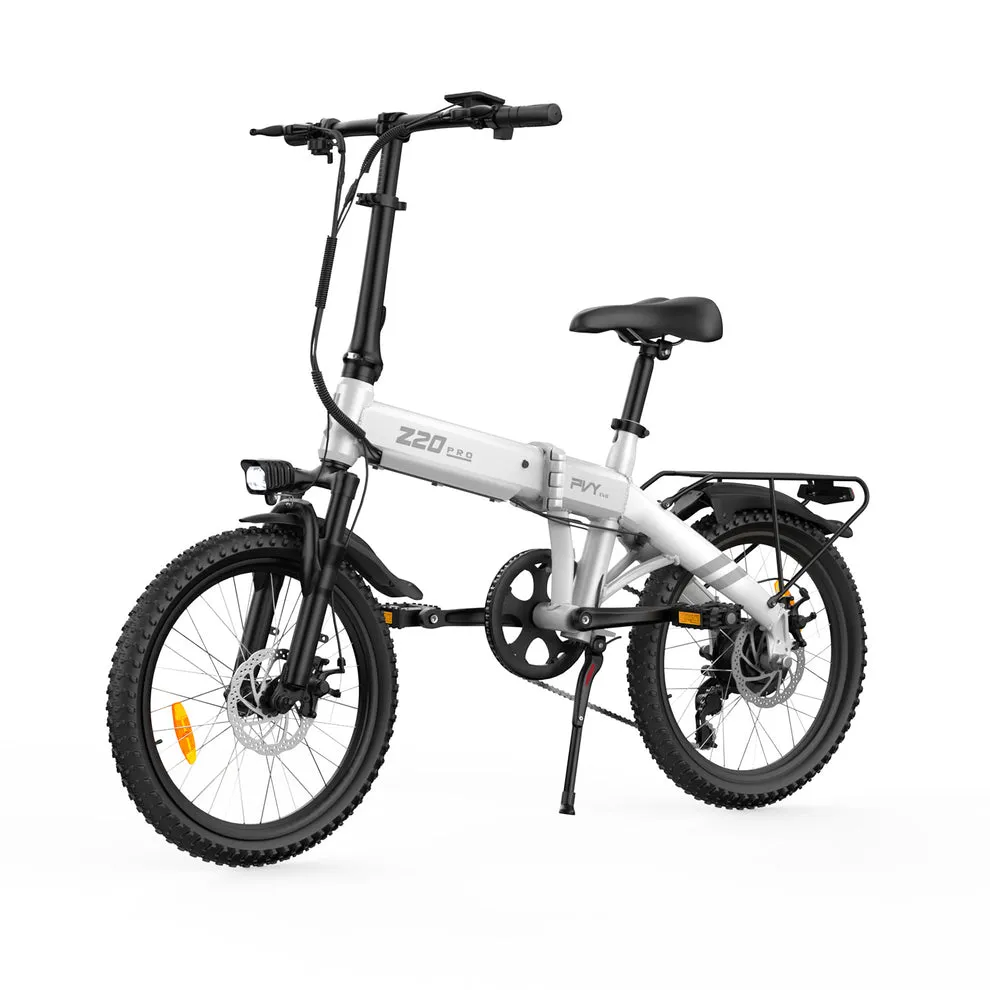

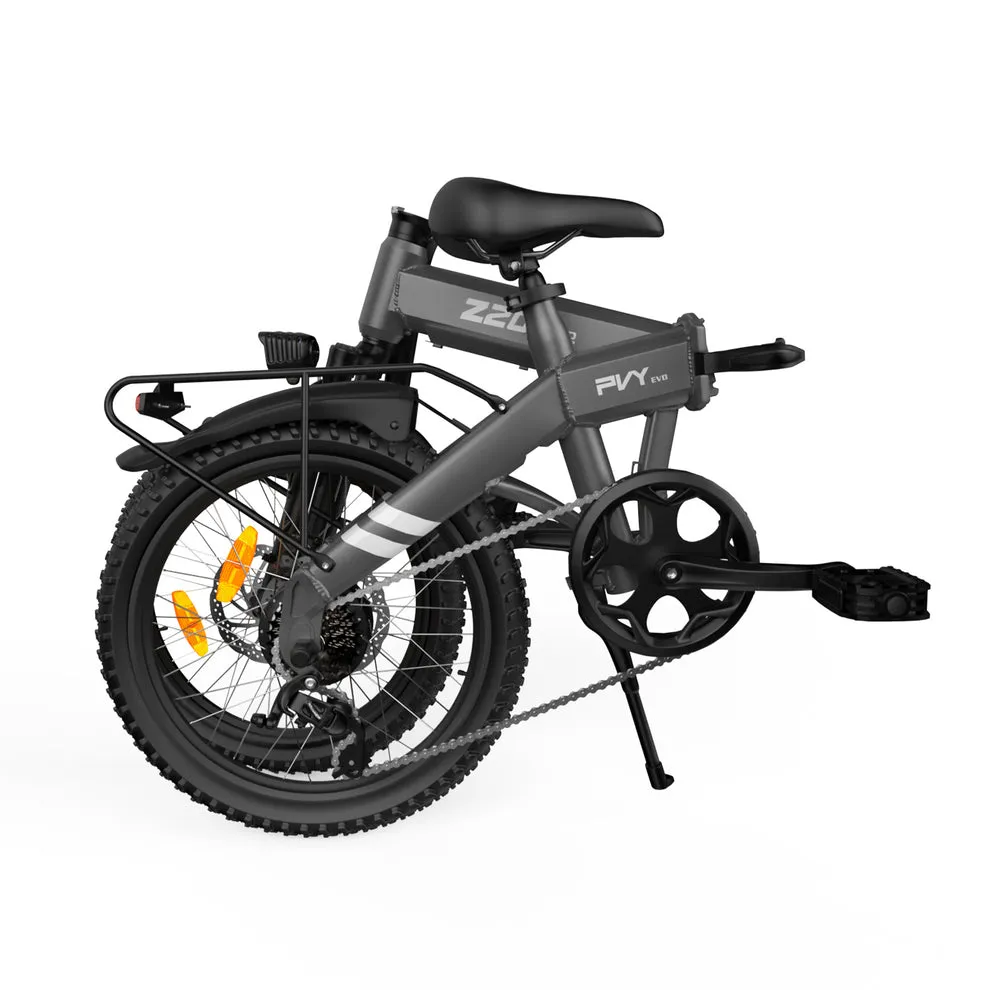

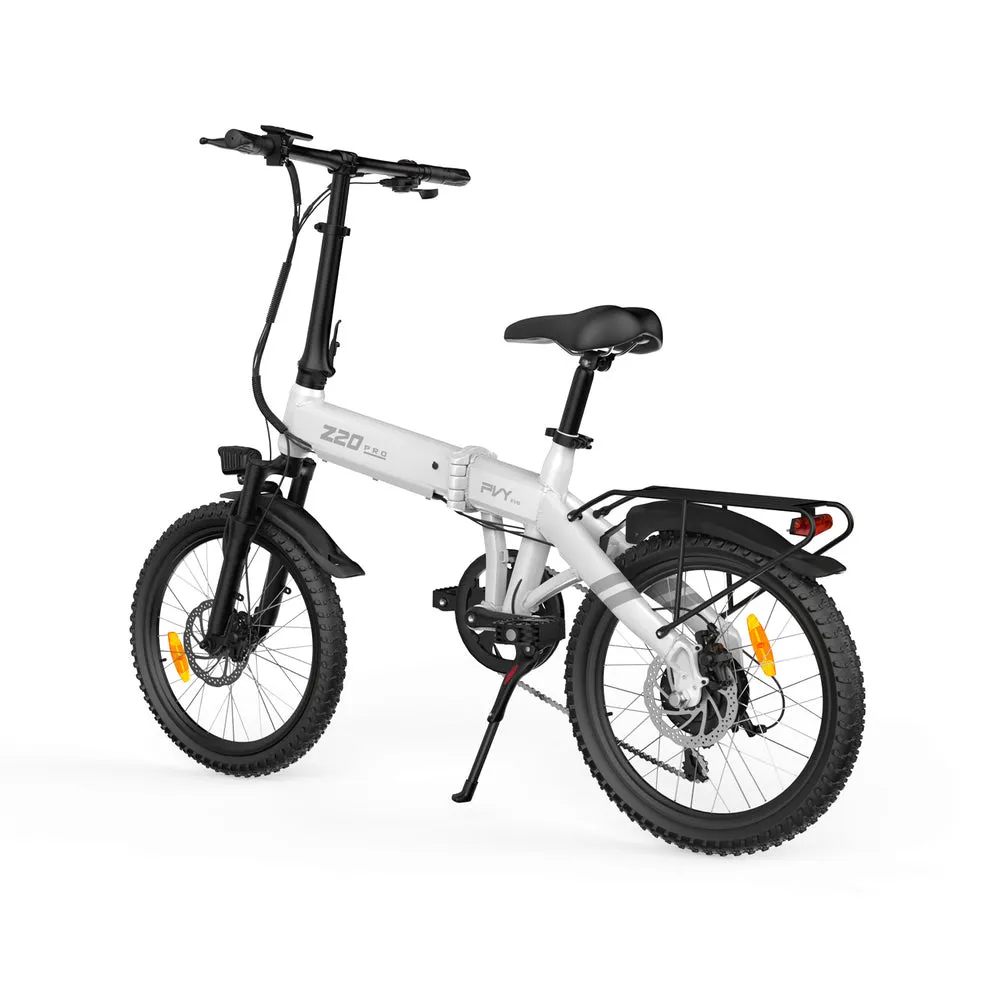

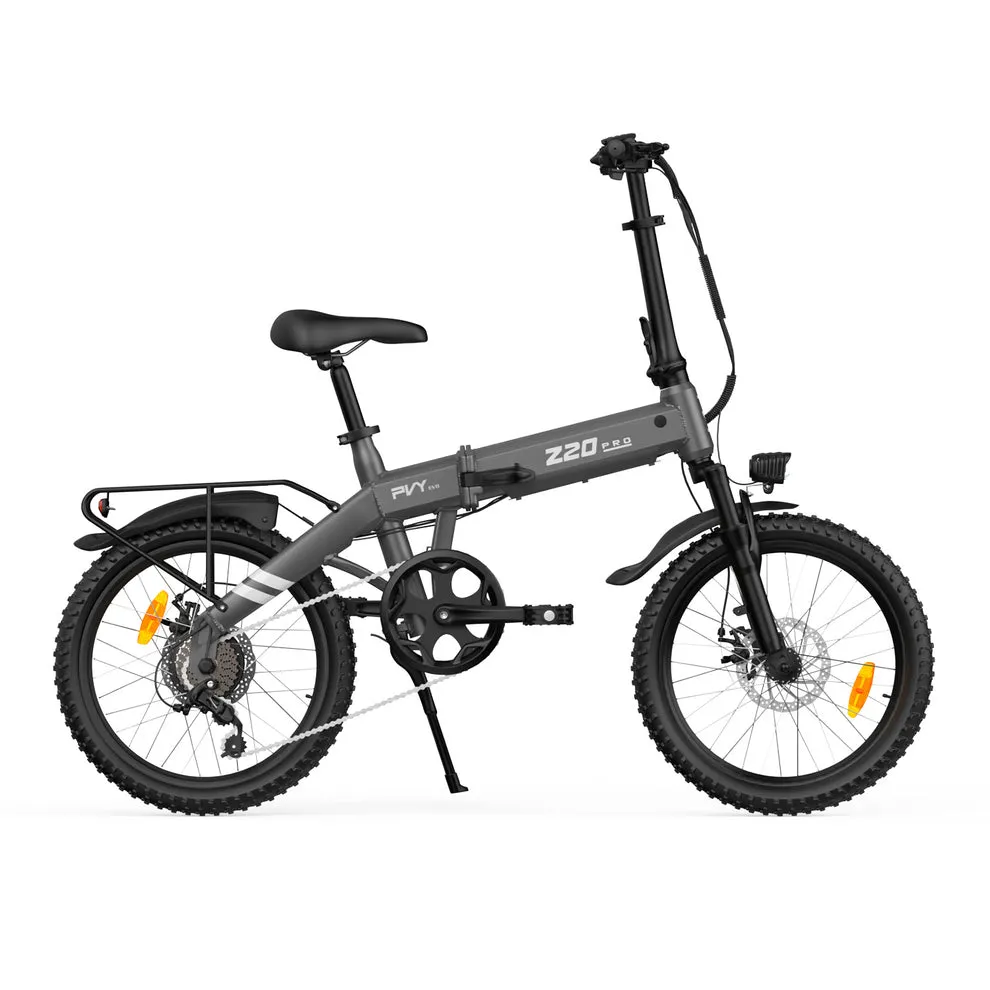

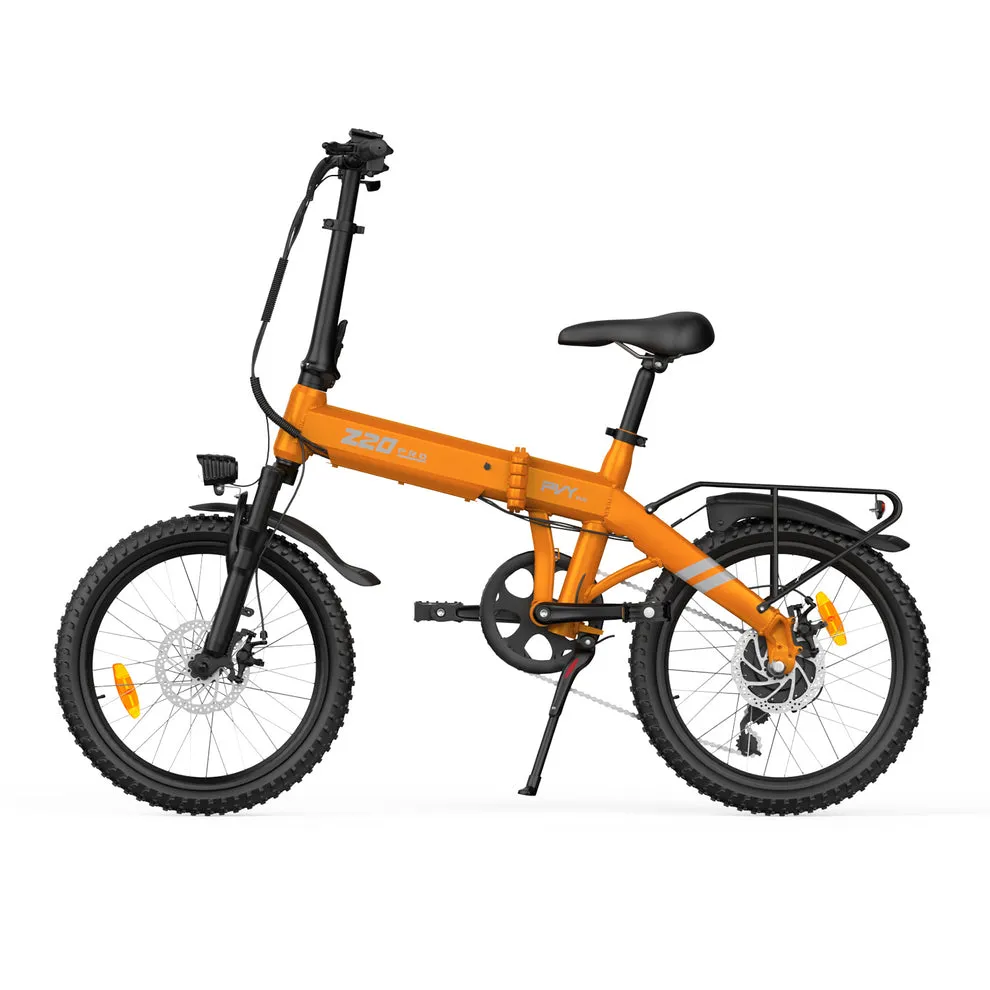

PVY Z20 PRO EVO – Urban Folding Electric Bike
Specification
Specification
🔹 General
-
Model: PVY Z20 PRO EVO
-
Certification: CE
-
Max Speed: 25 km/h
-
Max Range: Up to 120 km
-
Climbing Ability: 10°
-
Working Temperature: -10°C to 50°C
-
Waterproof Rating: IPX5
-
Colours: Grey, White, Orange
⚡ Motor & Performance
-
Motor Type: Hall Brushless Geared DC Motor
-
Rated Power: 250W
-
Unlockable Power: Up to 500W
-
Torque: 50 N.M
-
Sensor: Torque Sensor (Responsive)
-
Pedal Assist: 0–3 Levels
-
Throttle: Yes
🔋 Battery & Charging
-

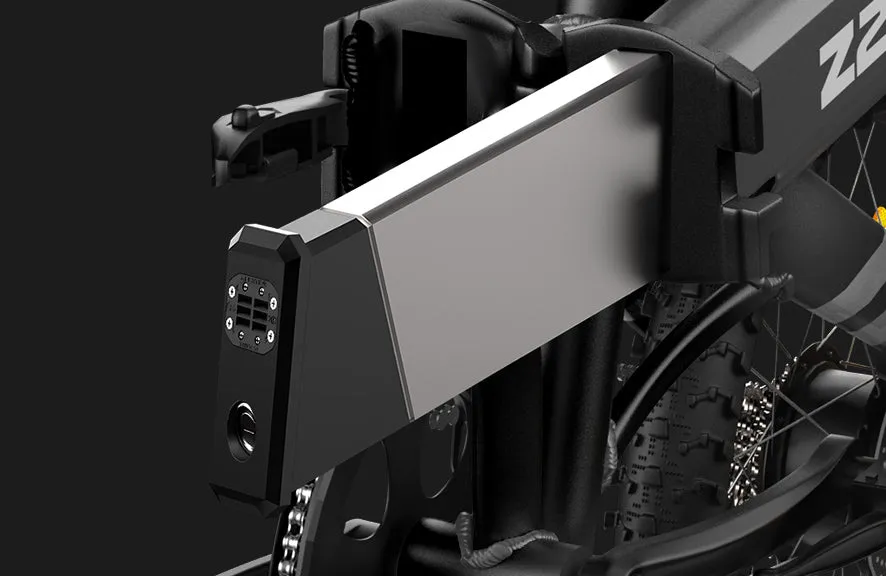

Battery: 36V 14.5Ah Lithium-Ion
-
Charger: 48V 2.0A
-
Battery Type: Standard (non-removable)*
(Battery removal depends on version / model configuration)
🛠 Frame & Suspension
-

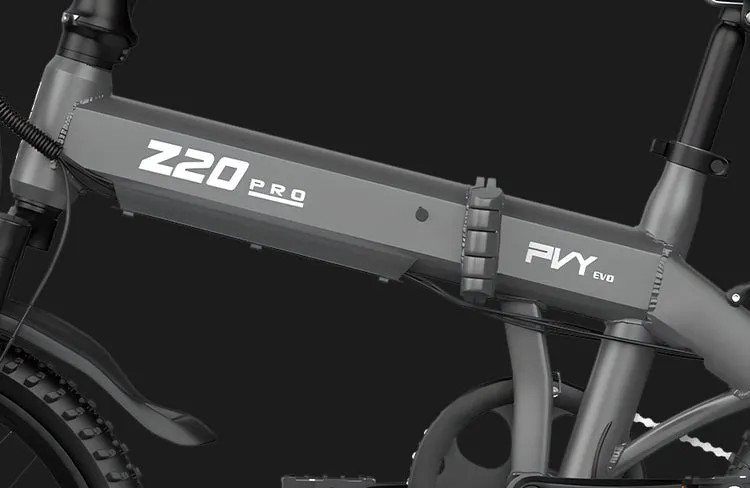

Frame Material: Upgraded 6061 Aluminum Alloy
-

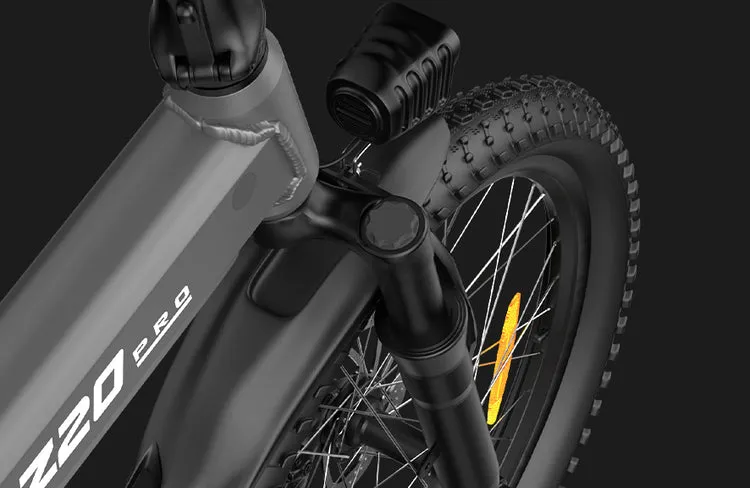

Front Fork: Shock Absorption Fork
🛑 Brake System
-

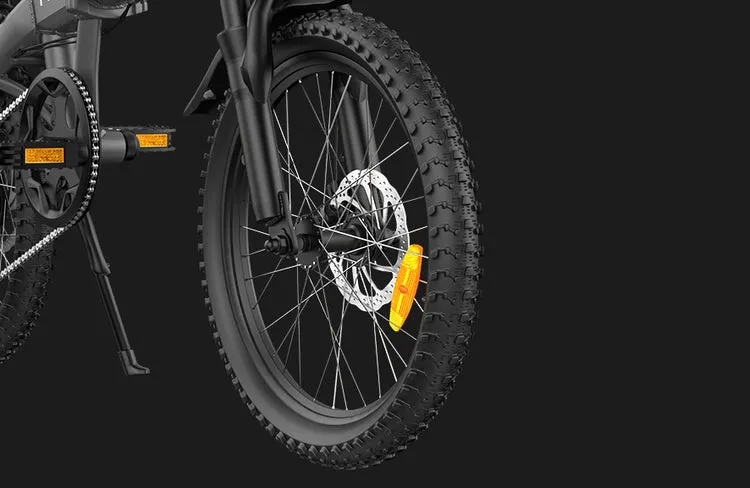

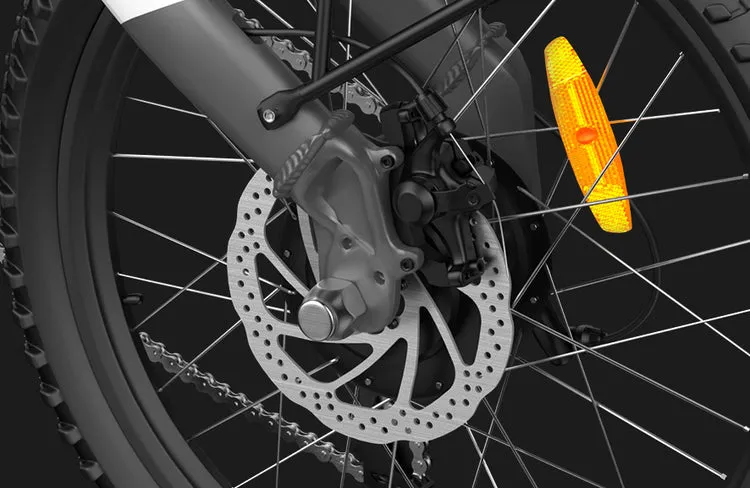

Brakes: Mechanical Disc Brakes
-

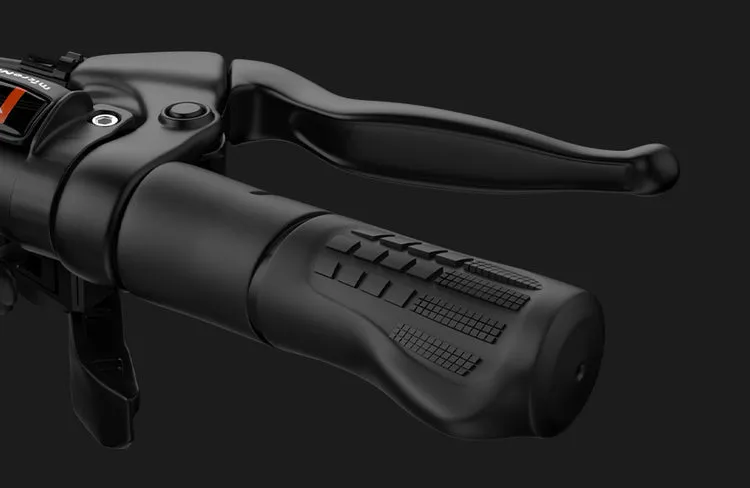

Brake Levers: Aluminum Alloy
🚴 Drivetrain
-

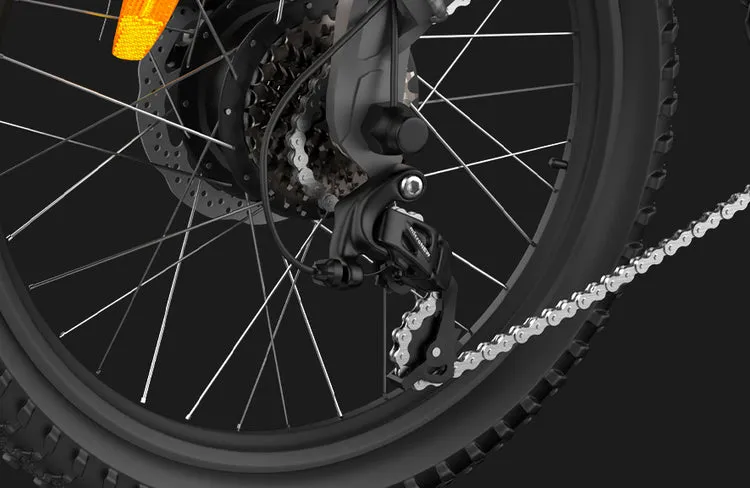

Rear Derailleur: 7-Speed
-

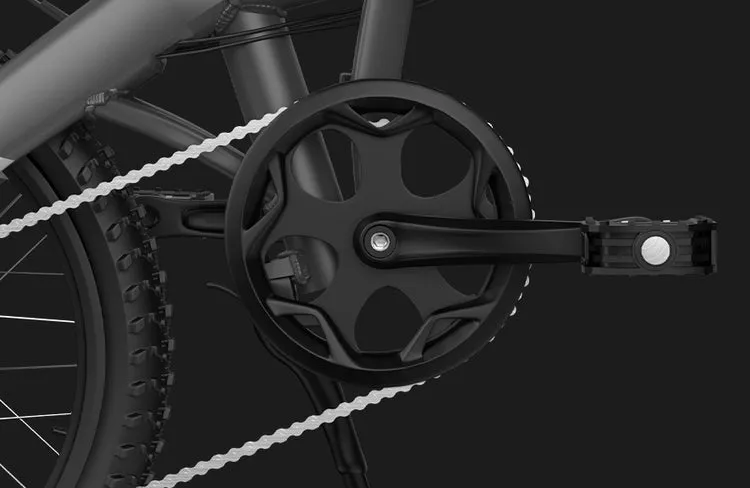

Chainring: 48T with Alloy CNC Crank
-
Tyre Size: 20 × 2.125 Inch
💡 Electronics & Lighting
-

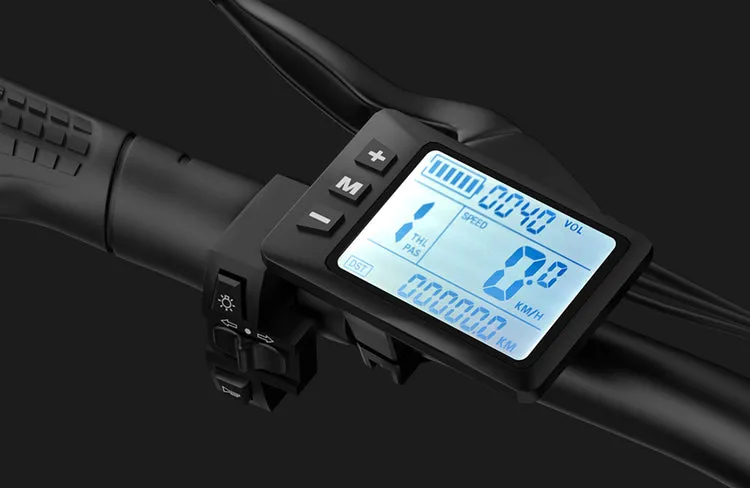

Display: HD LCD Display
-

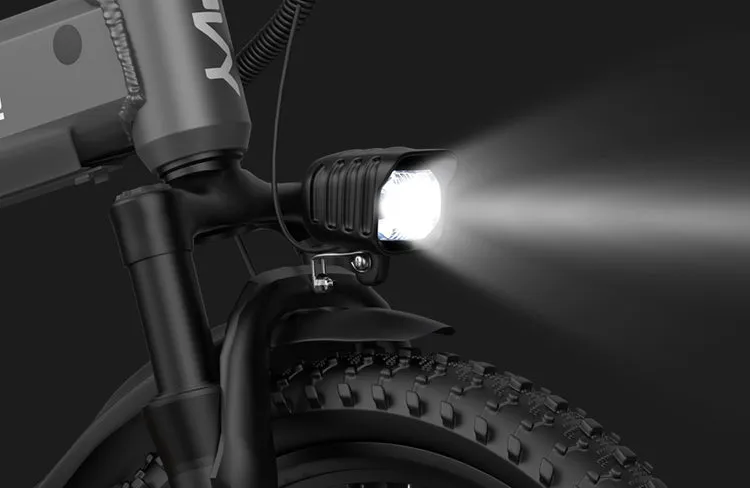

Headlight: 1200 Lumen (IPX5 Waterproof)
-

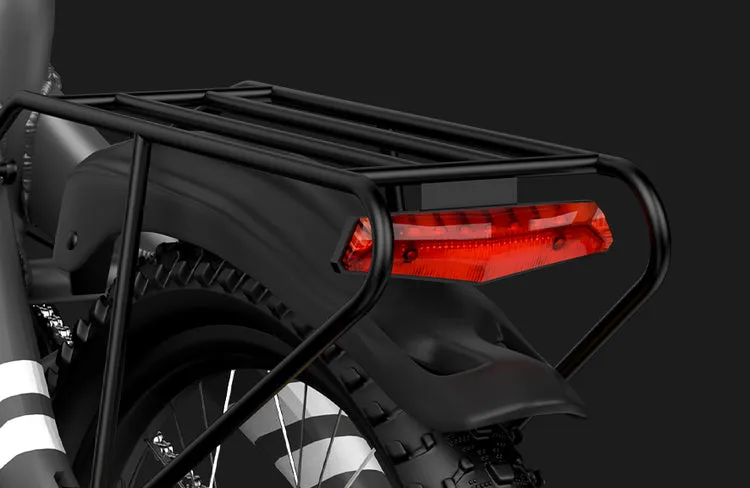

Turn Indicators: Integrated Taillight with Brake Light
⚖️ Weight & Load
-
Net Weight: 22.5 kg
-
Maximum Rider Load: 120 kg
-

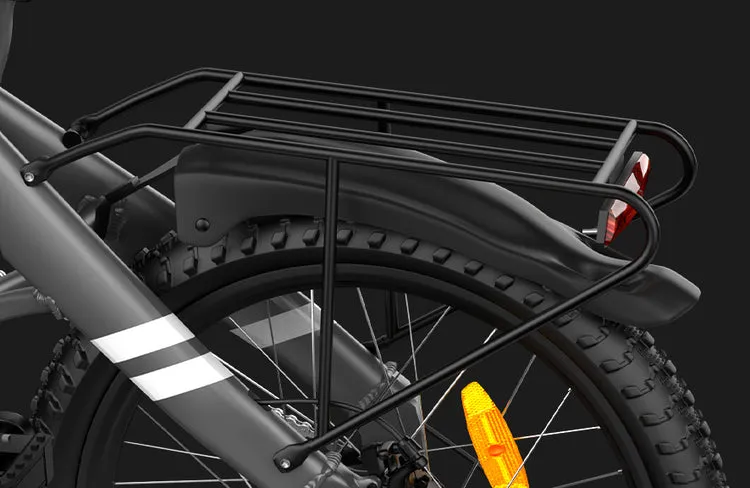

Rear Rack Load Capacity: 25 kg
Size and Fit
Size and Fit
Dimensions
-
Wheel Size: 20 inches
-
Approx. Length: 1700 – 1800 mm (varies by build)
-
Wheelbase: ~1050 mm
-
Handlebar Width: ~630 – 680 mm
-
Seat Height (Adjustable): ~850 – 1000 mm
Rider Fit Guidance
-
Recommended Rider Height: Approx. 160 – 195 cm
-
Riding Position: Upright commuter posture
-
Terrain Suitability: Urban roads, paved paths, light trails
-
Weight Capacity: Up to 120 kg
About the brand
Pvy Libon

PVY Z20 PRO EVO – Urban Folding Electric Bike
Product details
The PVY Z20 PRO EVO is a refined urban electric bike designed for efficient city commuting and everyday practicality. Combining lightweight construction with intelligent torque-sensing technology, it delivers smooth acceleration, natural pedal assistance, and reliable performance for modern riders.

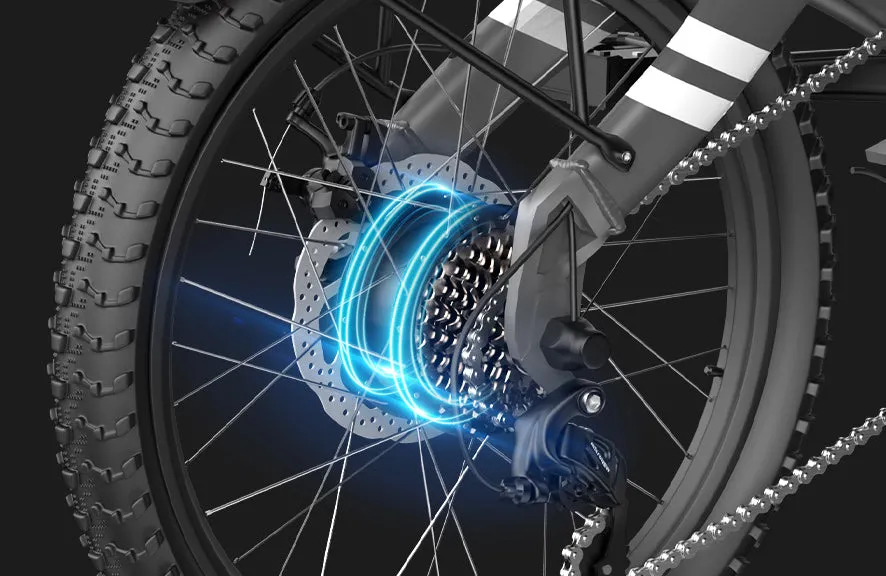

Powered by a 250W geared hub motor producing 50N.M of torque, the Z20 PRO EVO provides quick starts and confident hill climbing up to 10°. For riders seeking additional power, the motor can be unlocked up to 500W while maintaining stable and controlled output. The integrated torque sensor ensures instant response based on pedaling force, creating a more intuitive and energy-efficient riding experience compared to cadence-based systems.
Equipped with a 36V 14.5Ah lithium battery, this model offers an impressive range of up to 120 km on a single charge, making it ideal for longer commutes and daily urban travel. The battery system is optimized for lightweight efficiency while maintaining consistent power delivery.
Built with an upgraded 6061 aluminum frame and a shock-absorbing front fork, the Z20 PRO EVO balances durability with comfort. Mechanical disc brakes provide dependable stopping performance, while the 7-speed drivetrain allows smooth gear adjustments for varied terrain.
Additional features include an HD LCD display, 1200-lumen IPX5 waterproof headlight, integrated taillight with brake light and turn indicators, rear rack, foldable pedals, and 20 × 2.125 inch tyres for stable city riding.

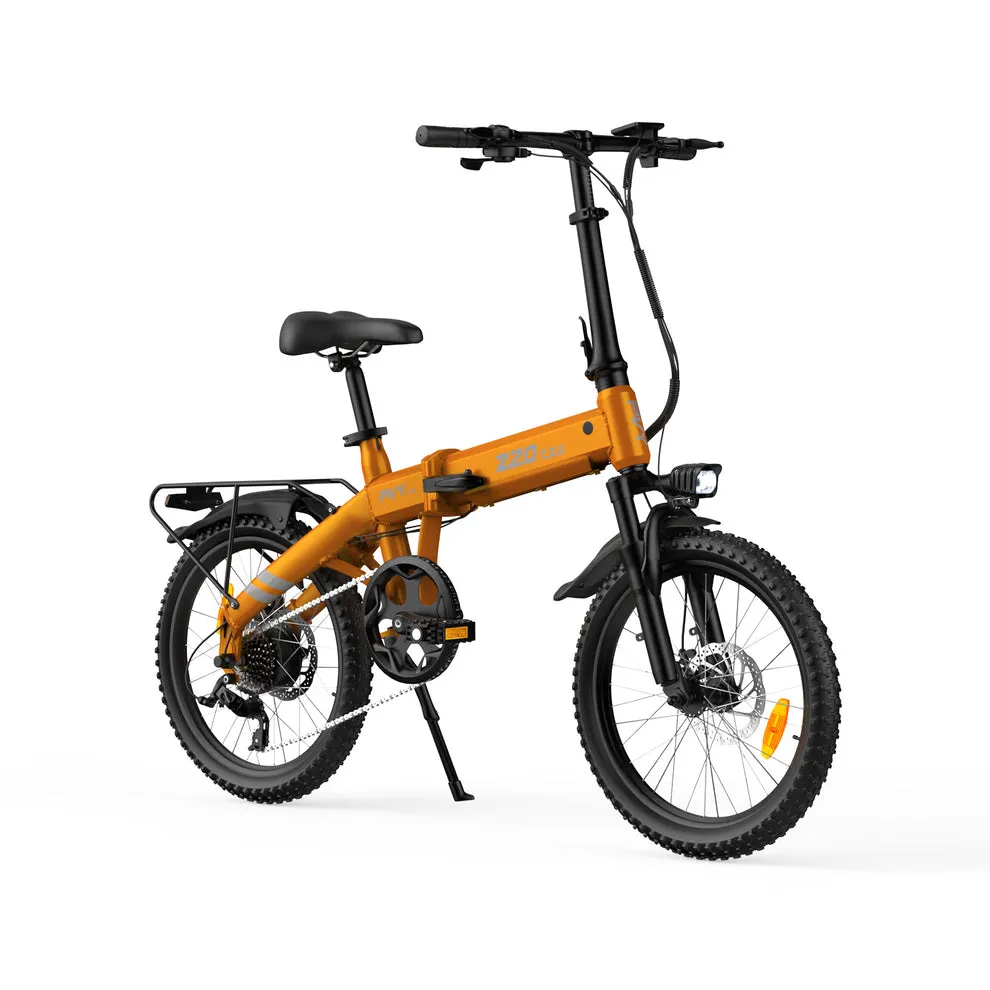

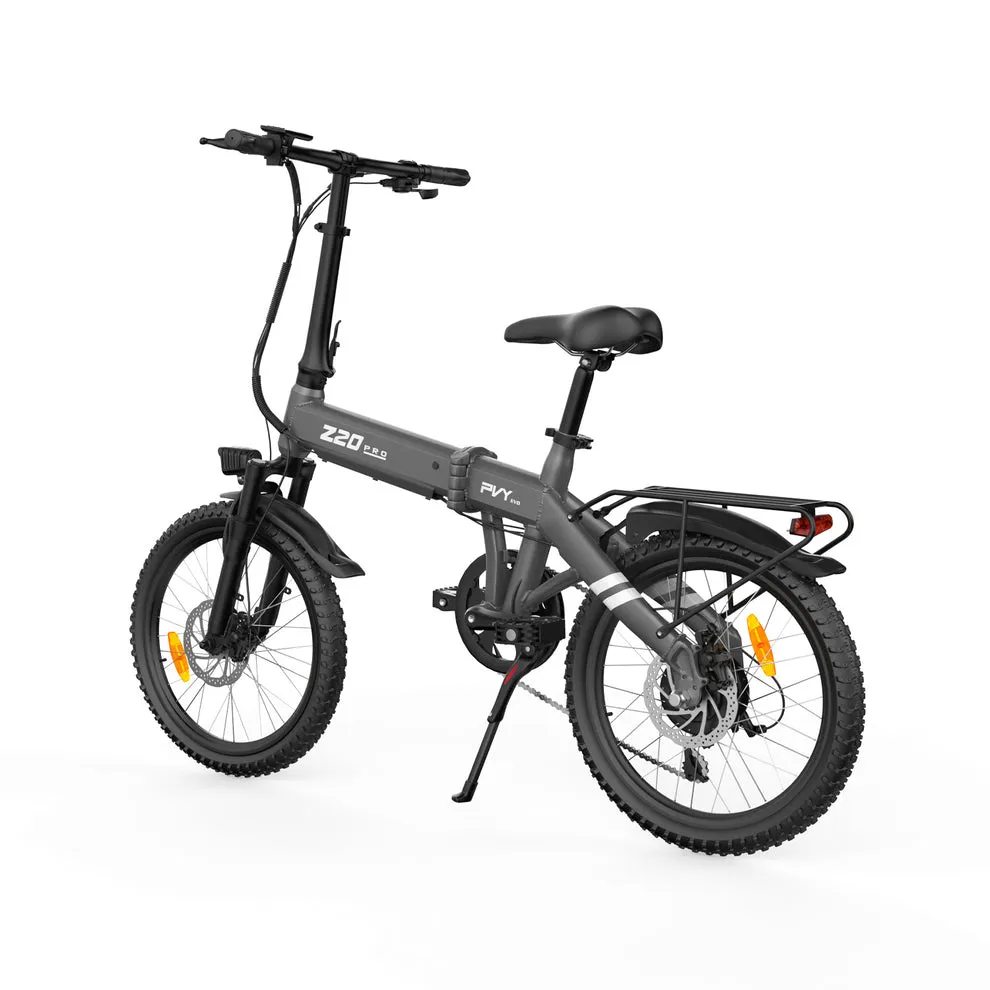

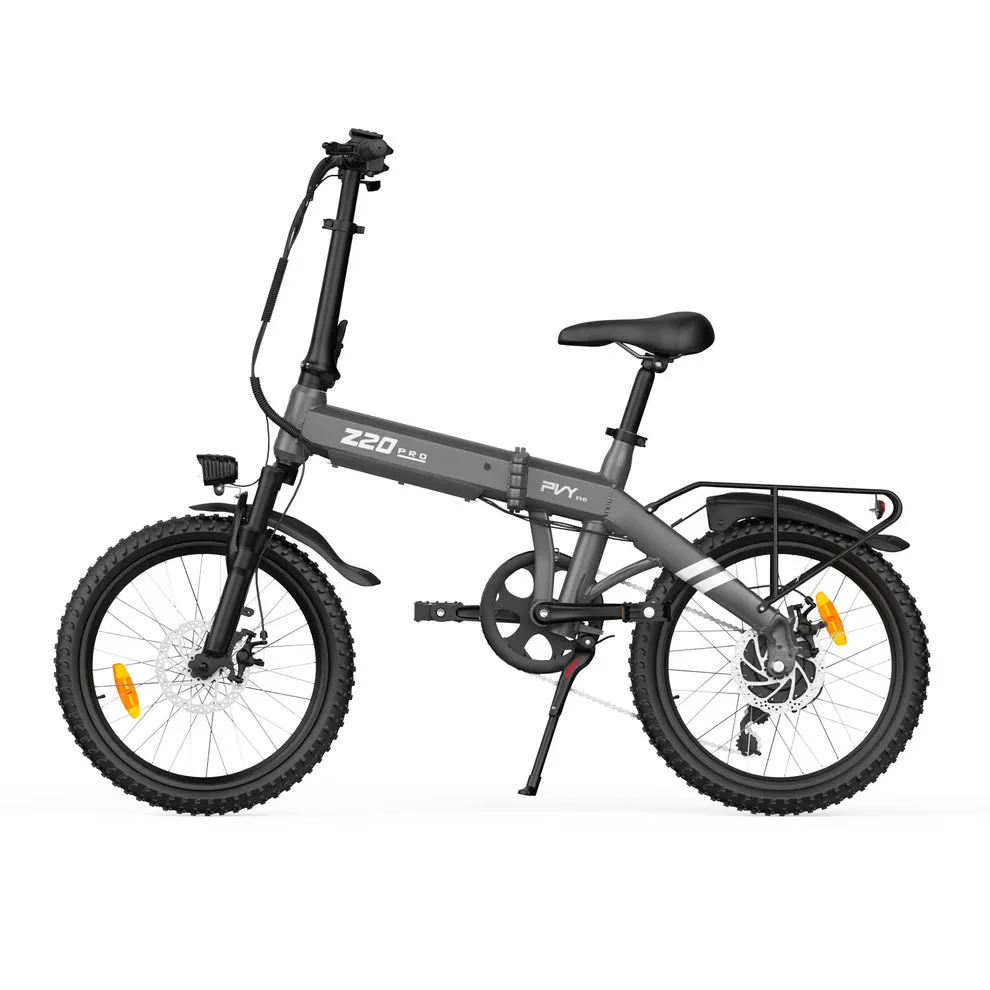

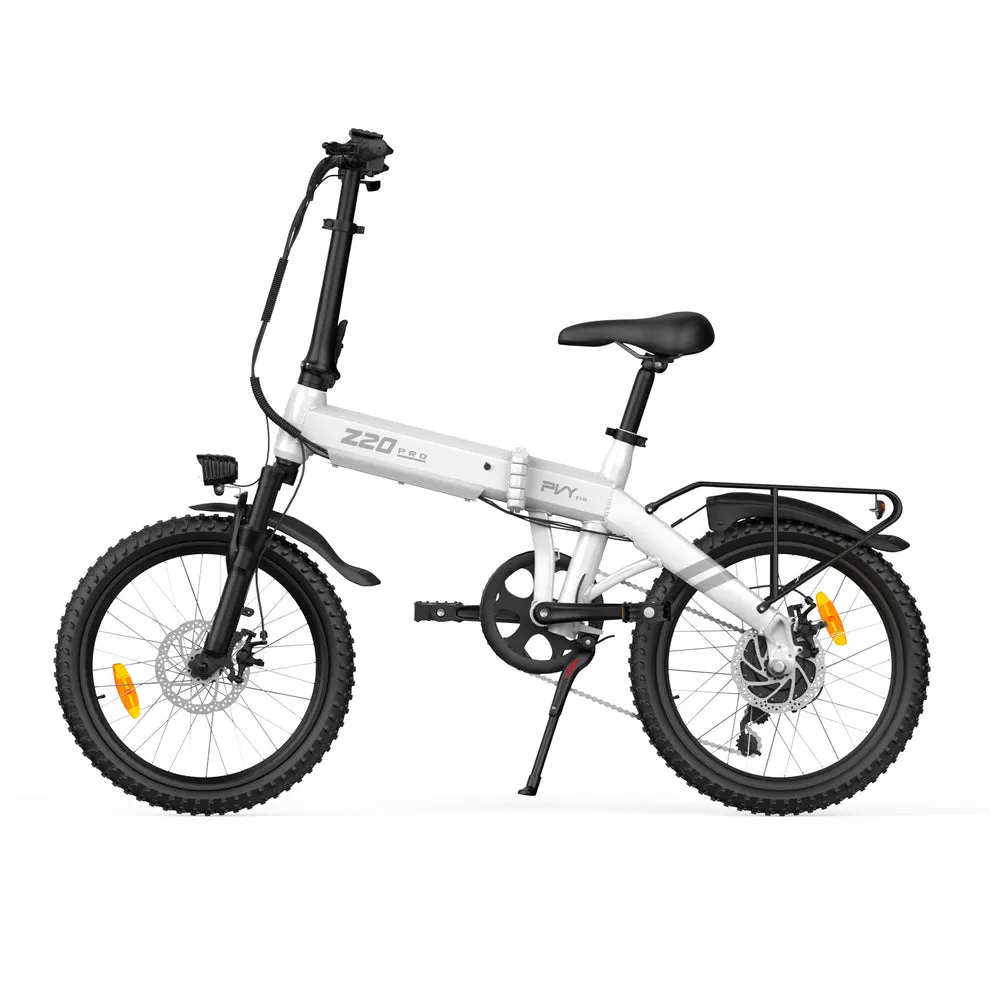

Available in Grey, White, and Orange, the PVY Z20 PRO EVO is a practical, efficient, and stylish solution for urban mobility — designed to make daily commuting smooth, responsive, and reliable.
