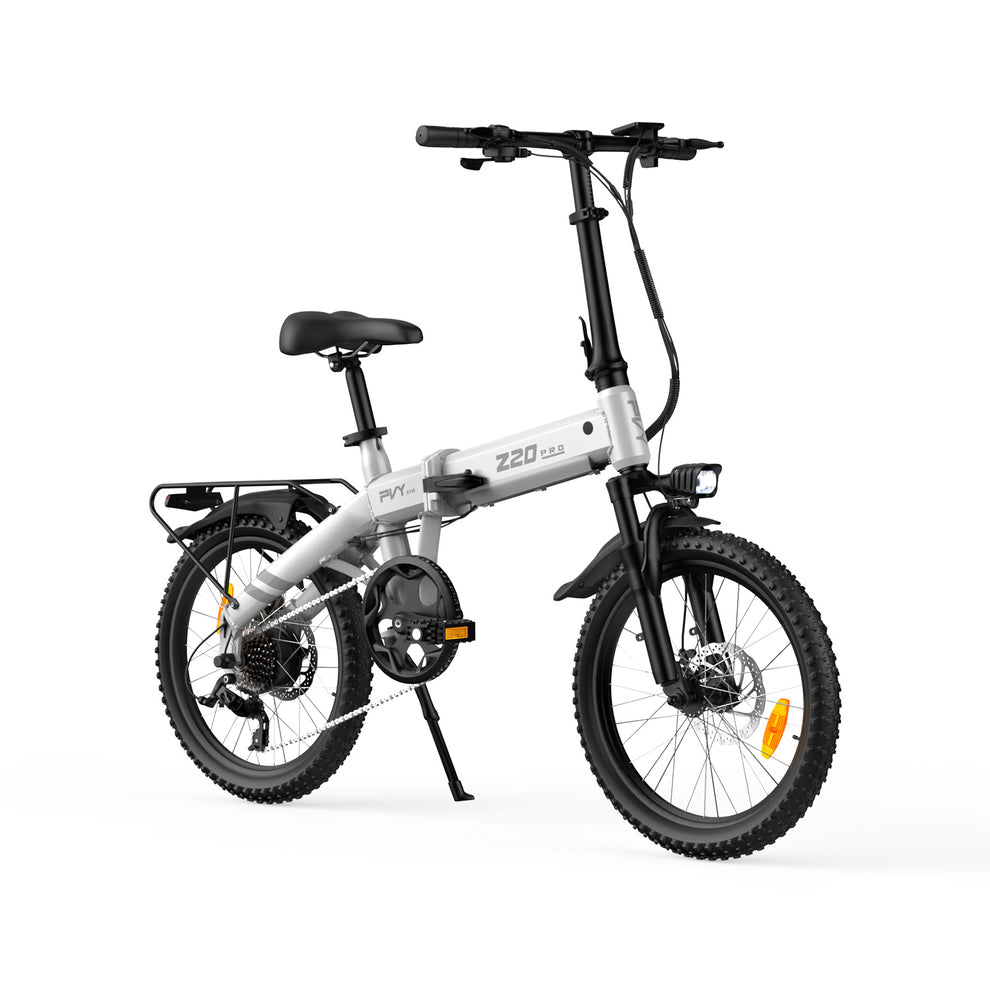

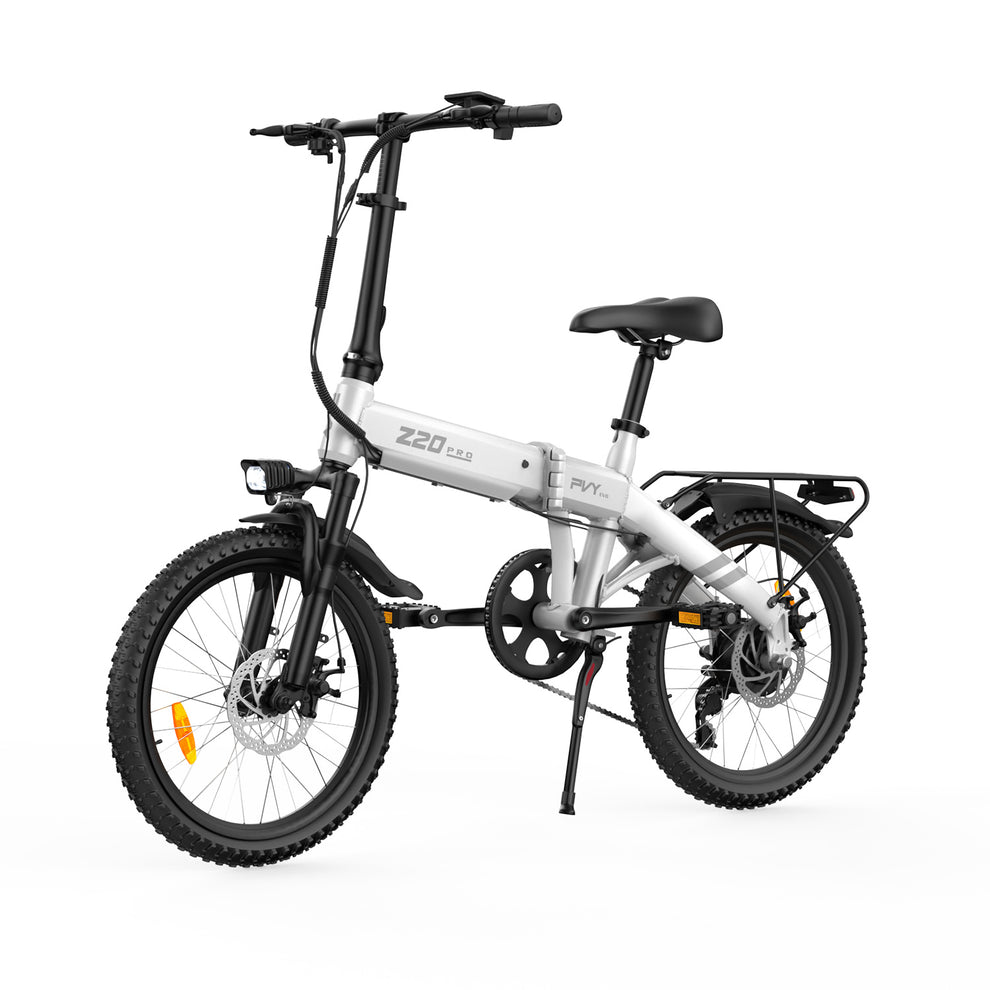

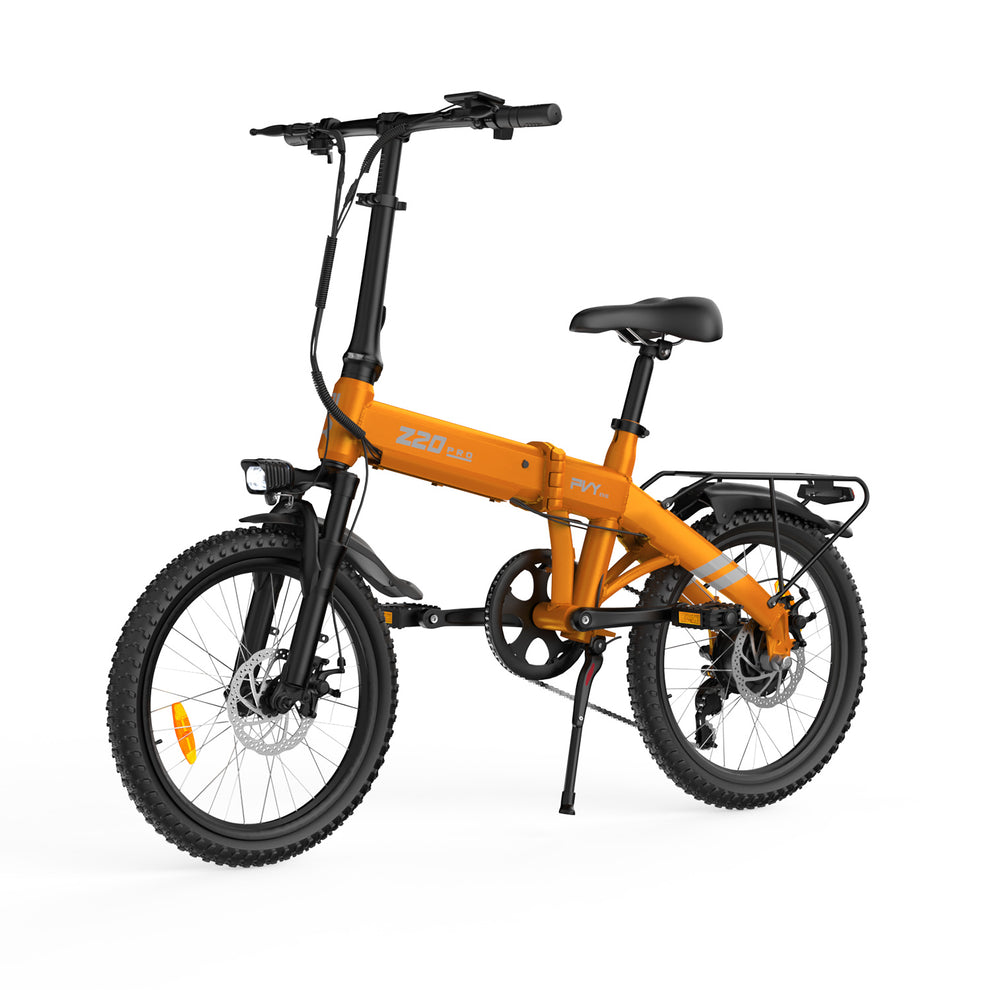

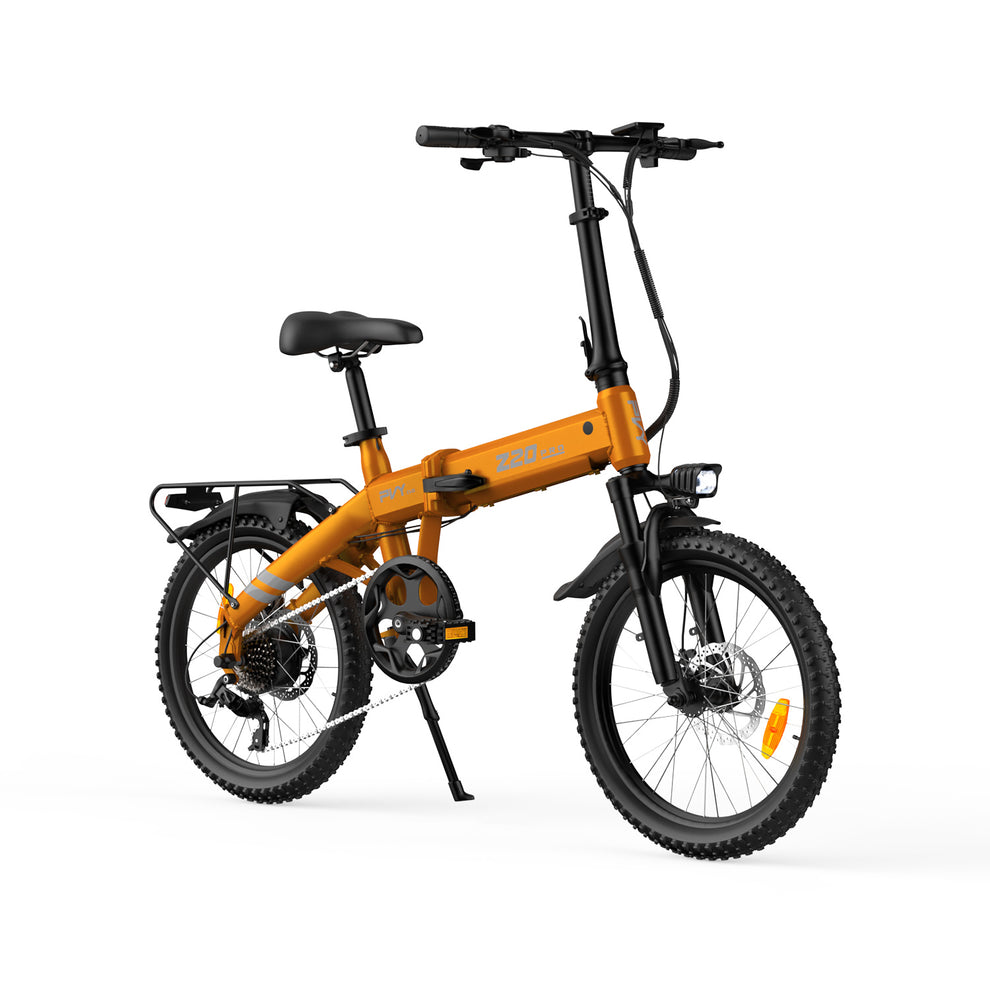

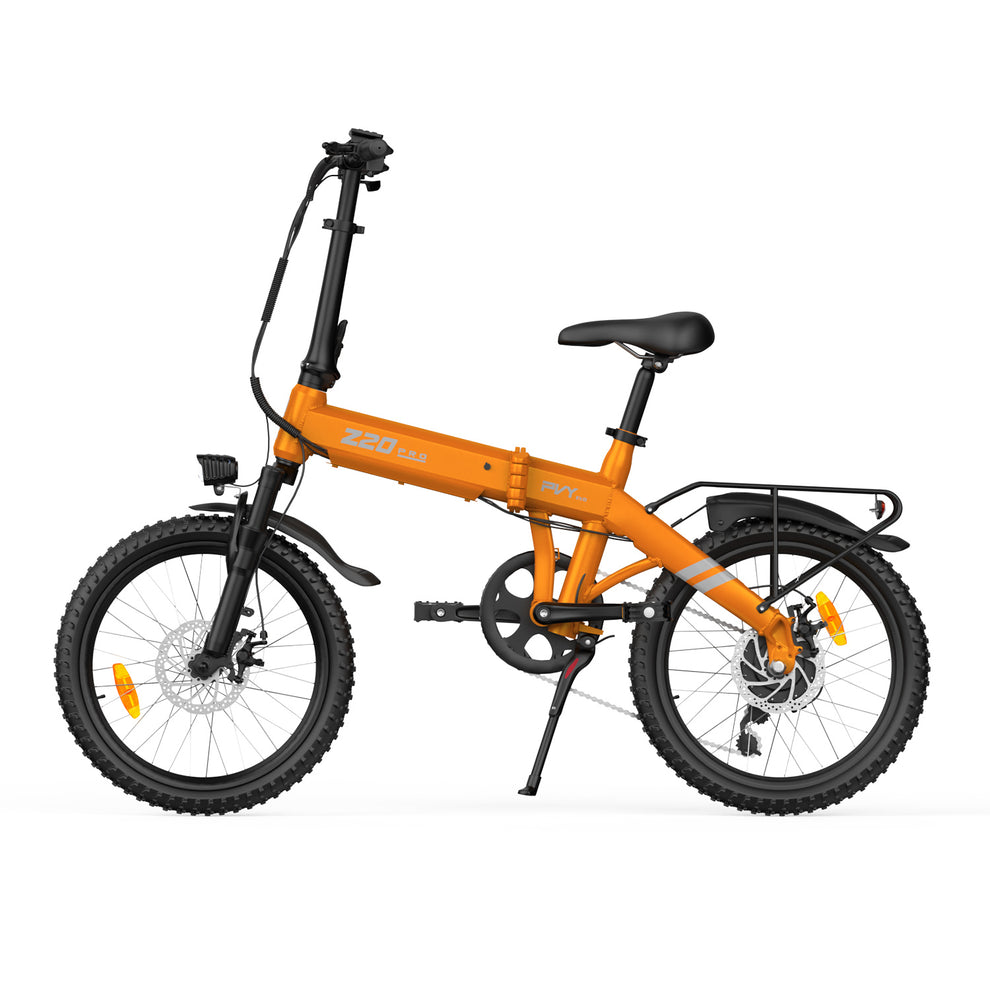

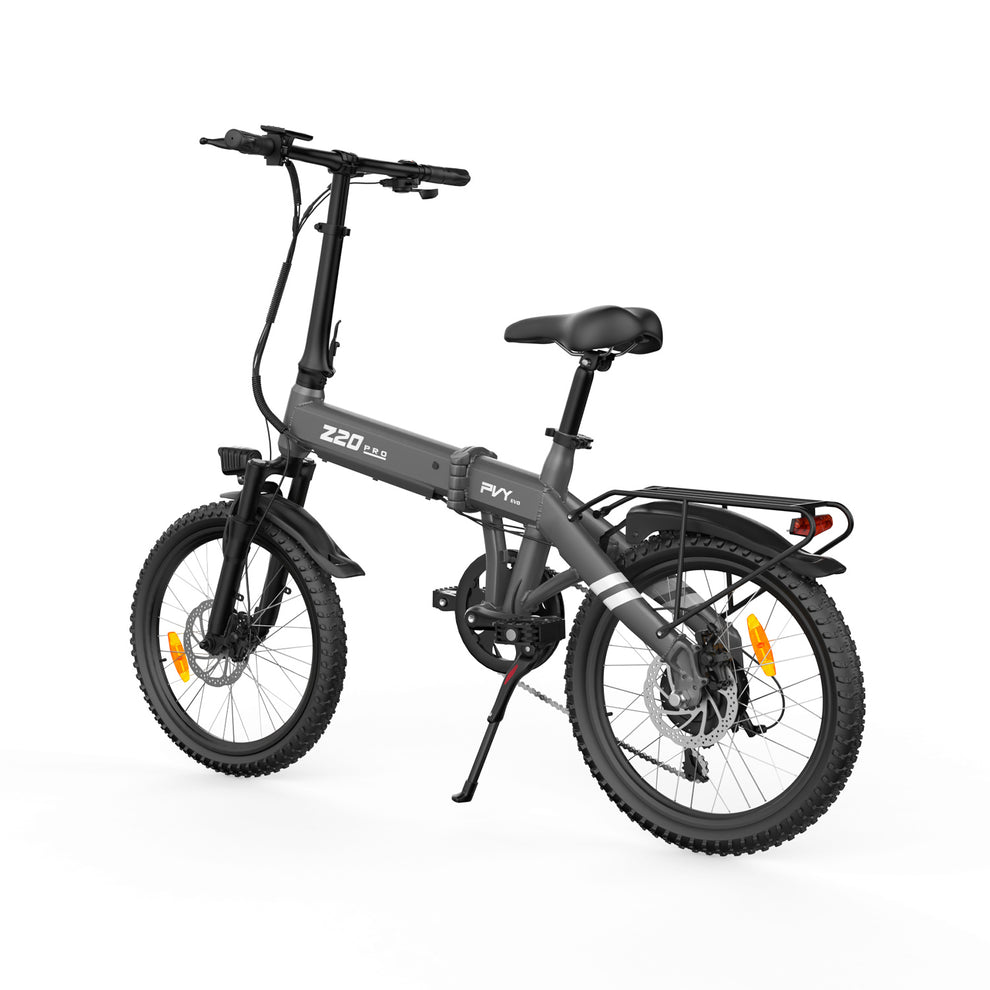

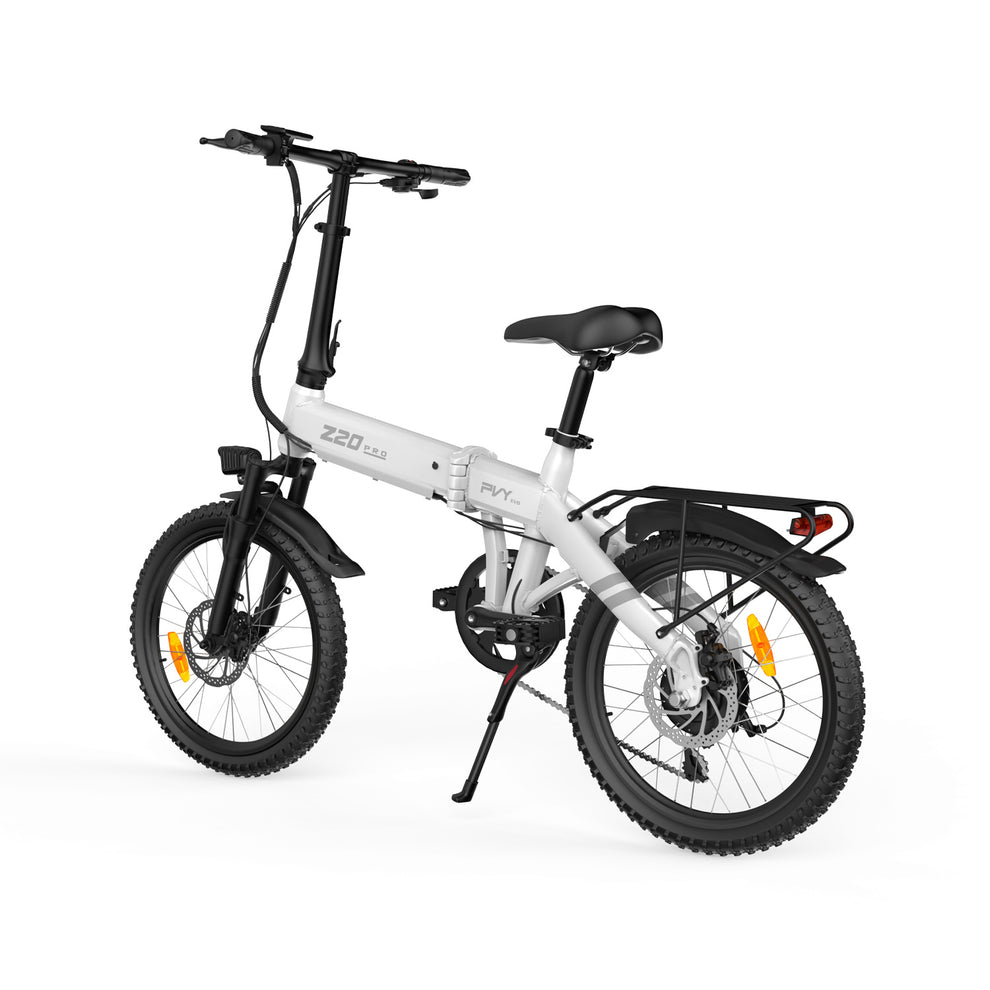

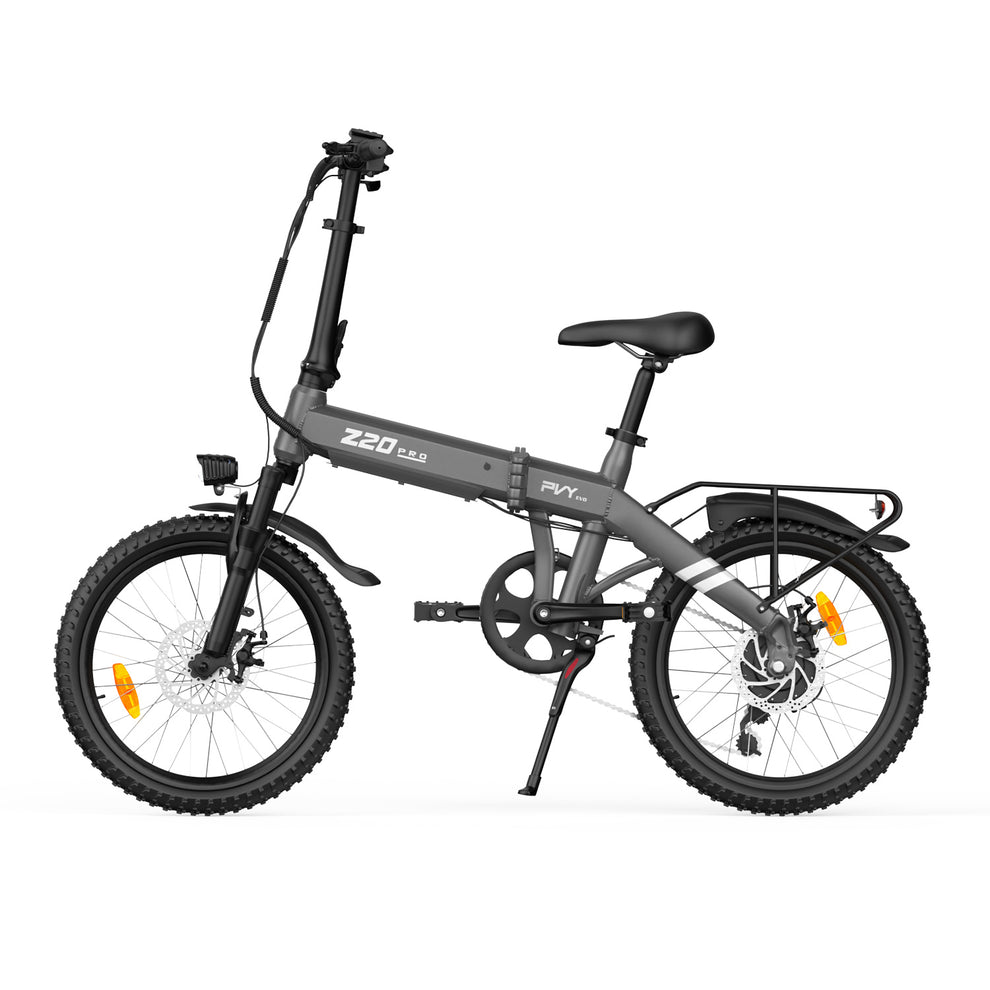

PVY Z20 PRO

Specification

🔹 General

• Model: PVY Z20 PRO

• Certification: CE

• Max Speed: 25 km/h

• Max Range: Up to 80 km

• Climbing Ability: 10°

• Working Temperature: -10°C to 50°C

• Waterproof Rating: IPX5

⚡ Motor & Performance

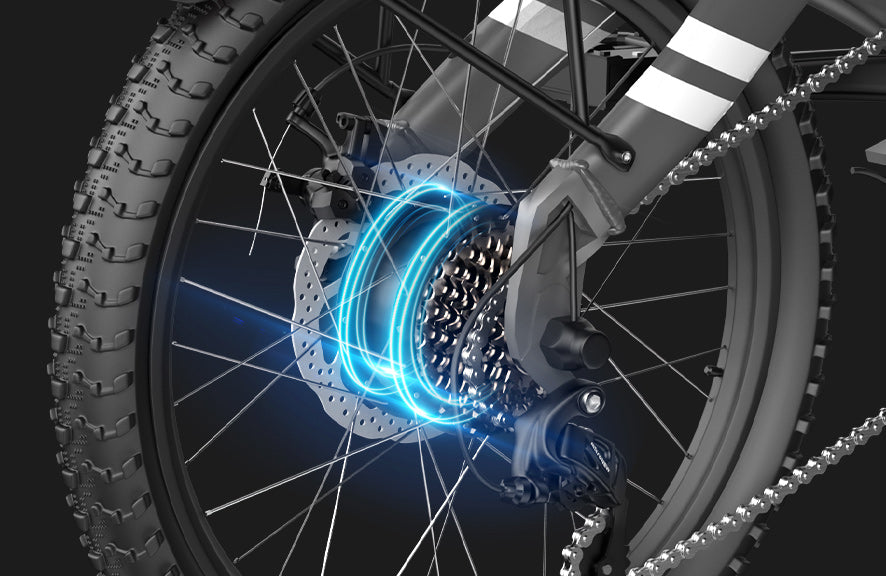

• Motor Type: Hall Brushless Geared DC Motor

• Rated Power: 250W

• Unlockable Power: Up to 500W

• Torque: 50 N·m

• Throttle Mode: Yes

• Pedal Assist: 0–3 Levels

🔋 Battery & Charging

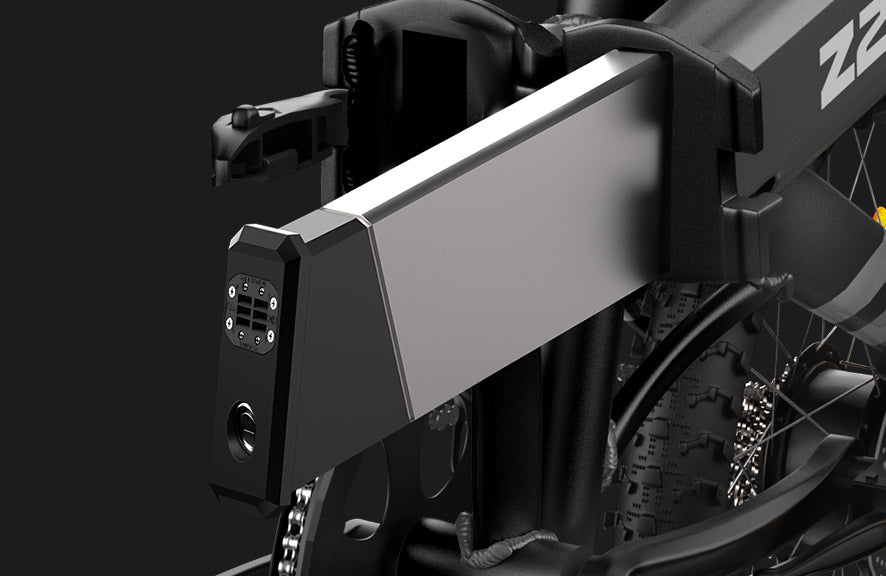

• Battery: 36V 10.4Ah Lithium-Ion

• Charger: 36V 2.0A

• Battery Type: Removable

• Range: Up to 80 km

🛠 Frameset

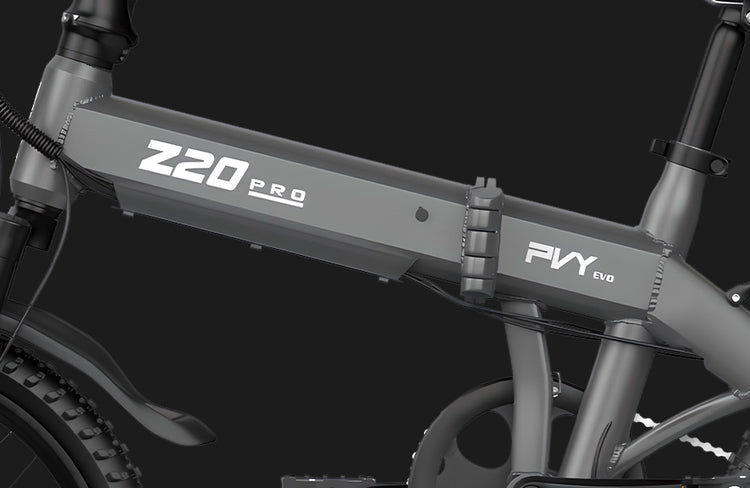

• Frame: Upgraded 6061 Aluminum Alloy

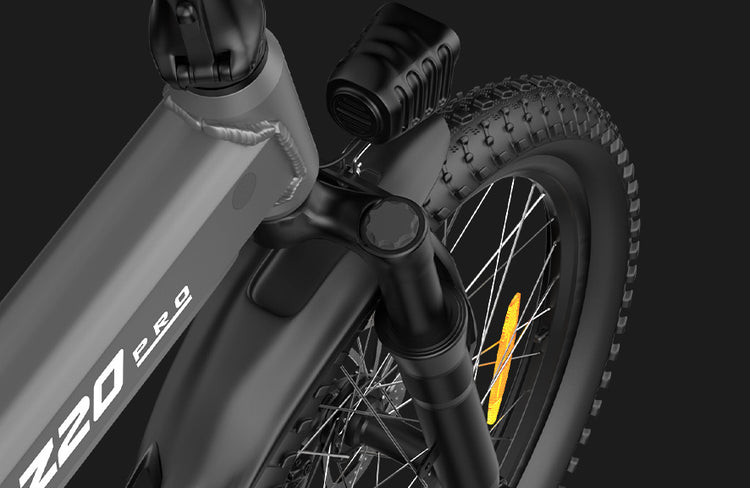

• Fork: Shock Absorption Fork

🛑 Brake System

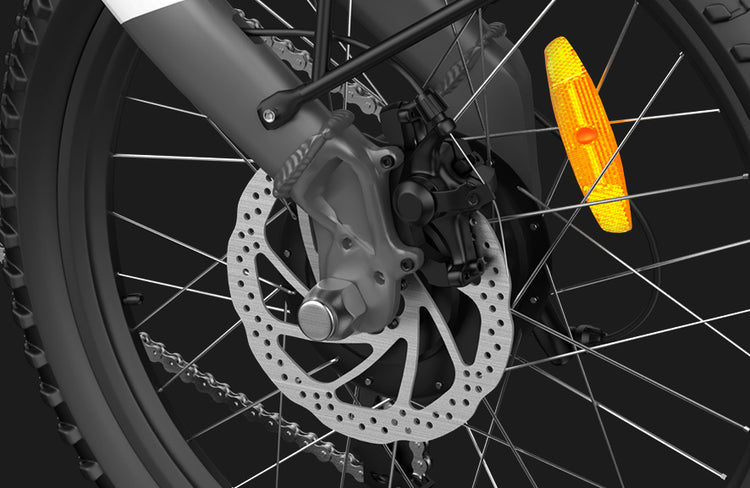

• Brakes: 160 mm Mechanical Disc Brakes

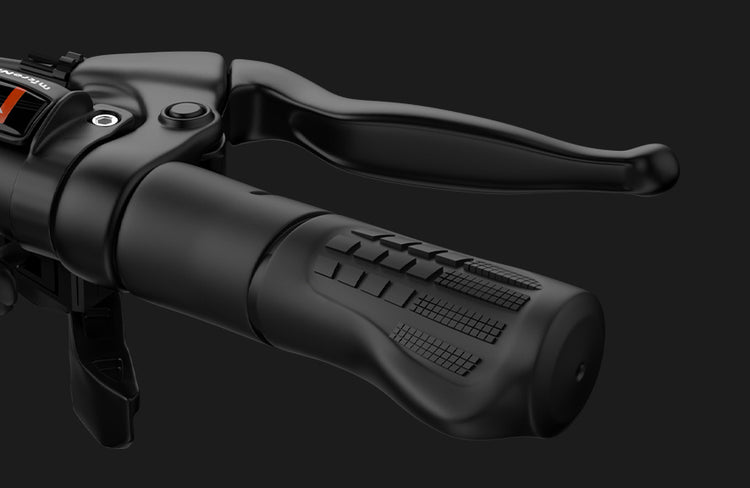

• Brake Levers: Aluminum Alloy

🚴 Drivetrain

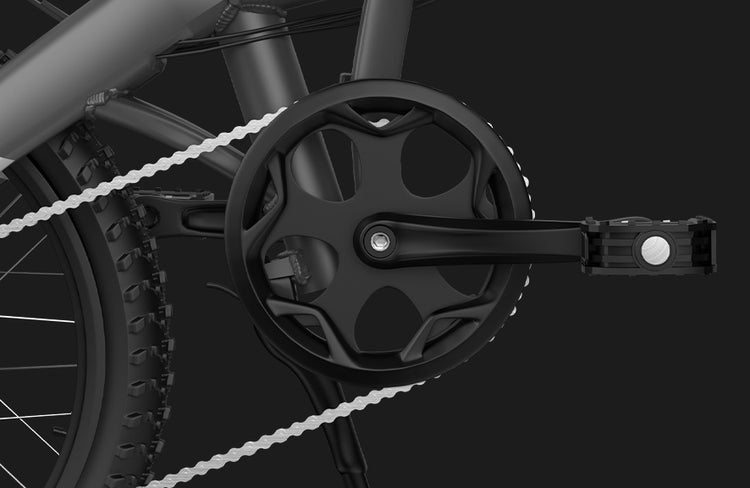

• Chainring: Pro Wheel 48T

• Crankset: 170 mm

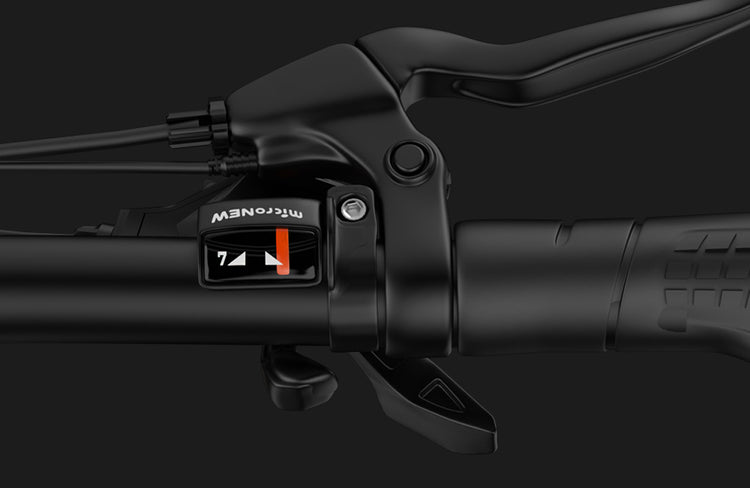

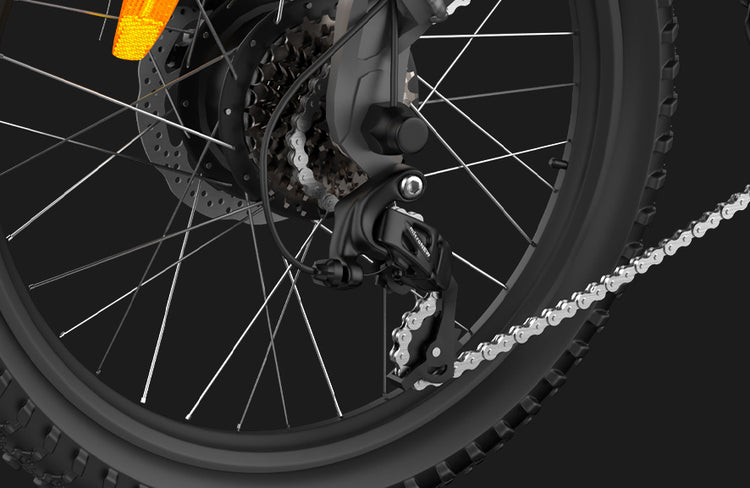

• Rear Derailleur: Shimano 6-Speed

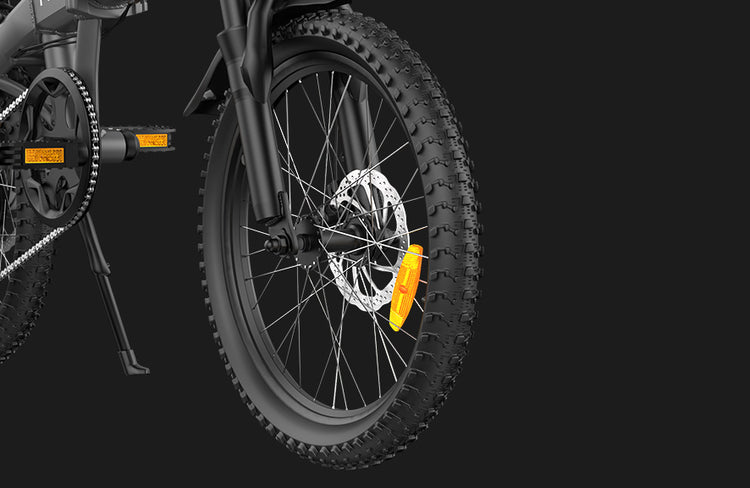

• Tyre Size: 20 × 2.3 Inch

💡 Electronics & Lighting

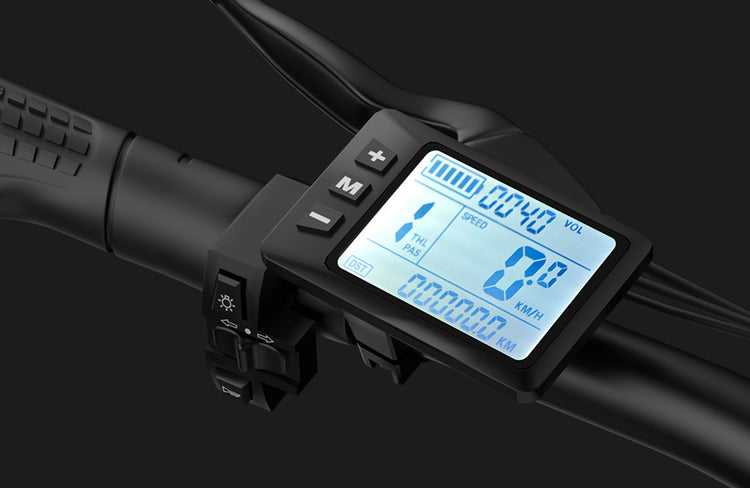

• Display: HD LCD Display

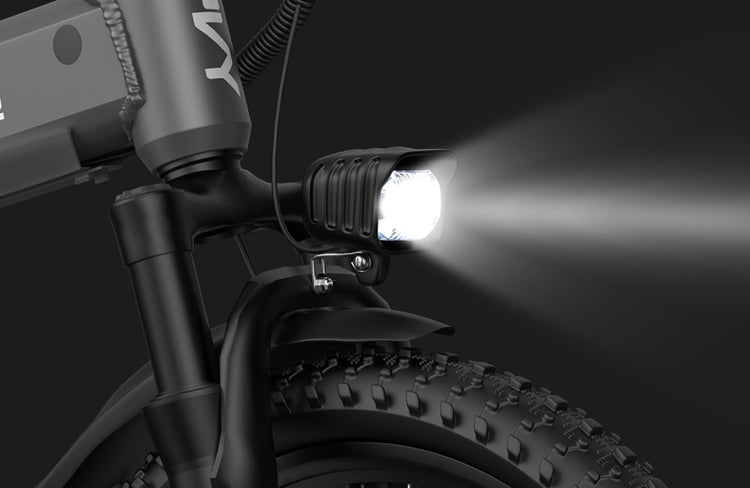

• Headlight: 1200 Lumen (IPX5 Waterproof)

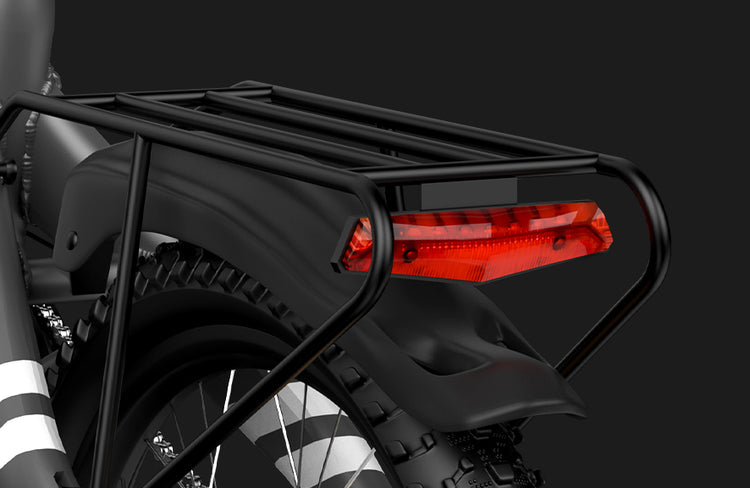

• Turn Indicators: Integrated Taillight with Brake Light

⚖️ Weight & Load

• Net Weight: 22 kg (Including Battery)

• Maximum Load Capacity: 120 kg

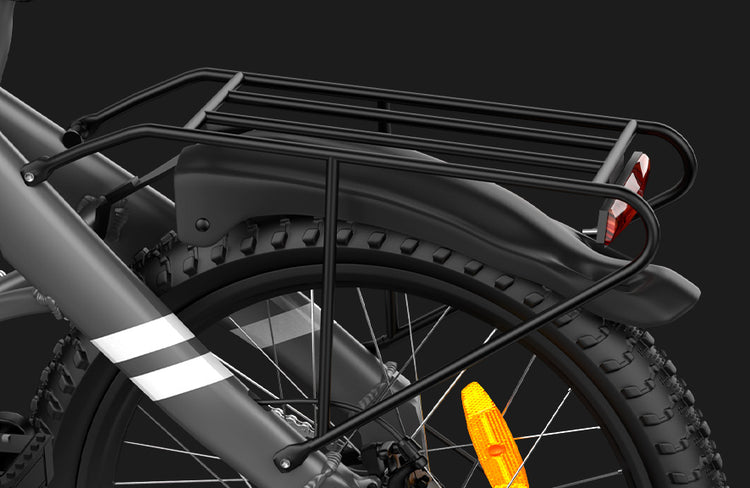

• Rear Rack Load Capacity: 25 kg

Size and Fit

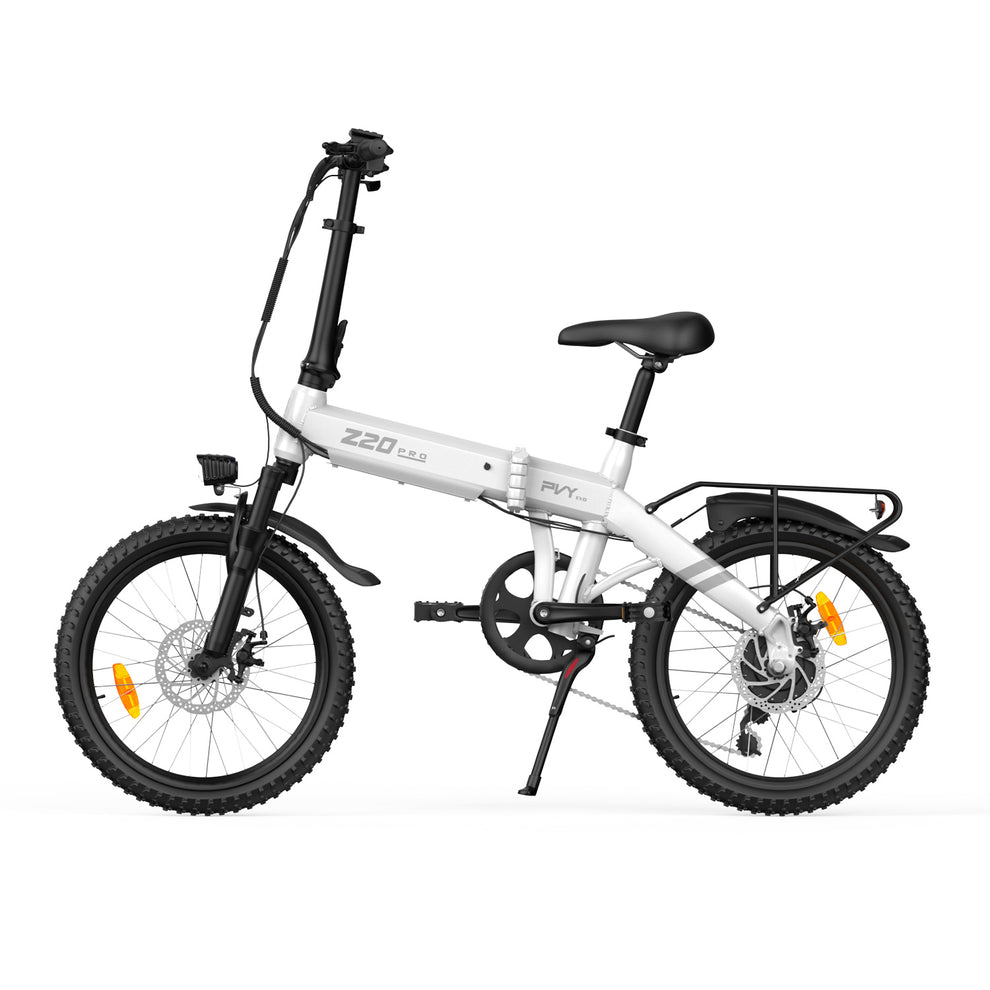

Bike Dimensions (Approximate)

• Wheel Size: 20 × 2.3 inch

• Overall Length: ~1700–1800 mm (varies slightly by production batch)

• Wheelbase: ~1050 mm

• Handlebar Width: ~630–680 mm

• Seat Height (Adjustable): ~850–1000 mm

🧍 Rider Fit Guidance

• Recommended Rider Height: ~160 cm – 195 cm

• Maximum Rider Weight: Up to 120 kg

• Terrain Suitability: Urban roads, paved paths, light commuting routes

• Riding Position: Upright, comfortable commuter stance

🪑 Ergonomics & Comfort

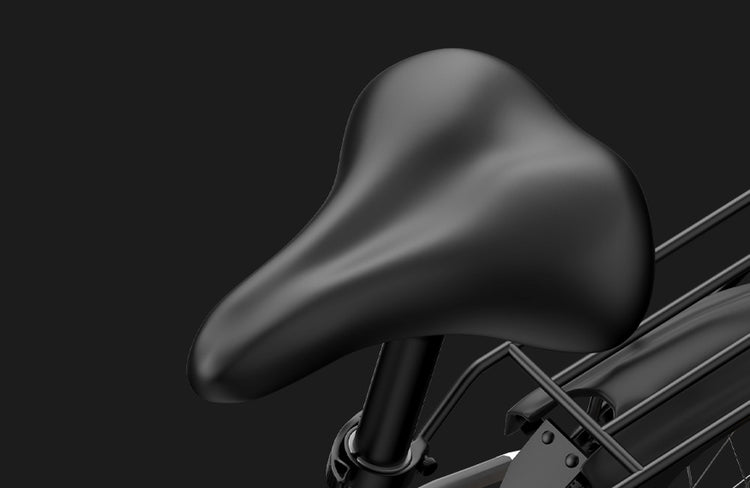

• Adjustable Seat Height — accommodates a wide range of adult sizes

• Shock Absorbing Fork — smoothens bumps for added comfort

• 20 inch Tires — stable and maneuverable for city riding
