WPB Boyo 110 manual
Specification
Specification
| Distributor | Stomp Distribution LTD |
|---|---|
| Manufacturer | WPB |
| Model | WPB Boyo 110 Manual |
| Warranty | 6 months (parts only) |
| Engine | YX110, 4-stroke, air cooled |
| Valves | SOHC, 2 valve |
| Displacement | 106.7cc |
| Bore x Stroke | 52.4 × 49.5 mm |
| Compression Ratio | 9.0:1 |
| Fuel System | Carburettor 19mm Nibbi |
| Max Power | 5.1 kW @ 8000 RPM |
| Max Torque | 7.2 N·m @ 5000 RPM |
| Clutch | Wet, 3 disc |
| Ignition | CDI |
| Starting | Kick start |
| Transmission | Manual 4-speed (N-1-2-3-4) |
| Final Drive | 420 chain |
| Frame | Light-weight steel spine frame |
| Swing Arm | Steel 390 mm |
| Handlebar | Lightweight steel |
| Front Suspension | Non-USD 630 mm forks |
| Rear Suspension | 270 mm adjustable pre-load shock |
| Front Rim | Steel rims with SDG hubs 14" |
| Rear Rim | Steel rims with SDG hubs 12" |
| Tyres | Front: 60/100-14, Rear: 80/100-12 |
| Brakes | Front: Hydraulic 190mm disc, Rear: Hydraulic 180mm disc |
| Wheelbase | 1085 mm |
| Ground Clearance | 275 mm |
| Seat Height | 740 mm |
| Dry Weight | 60 kg |
| Fuel Capacity | 3.5 litres |
| Wheel Size | 14/12 |
| Packing Size | 1430 × 380 × 640 mm |
Size and Fit
Size and Fit
About the brand
Stomp

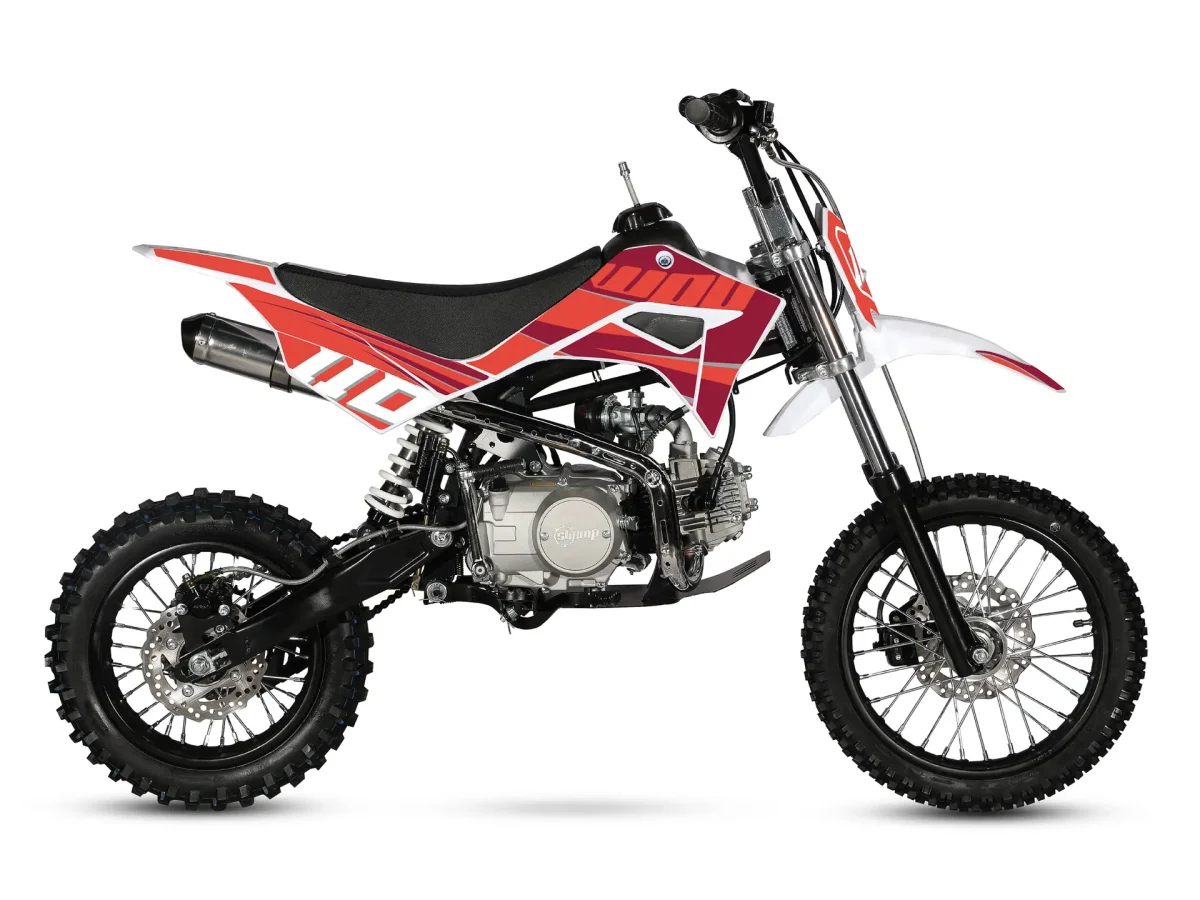

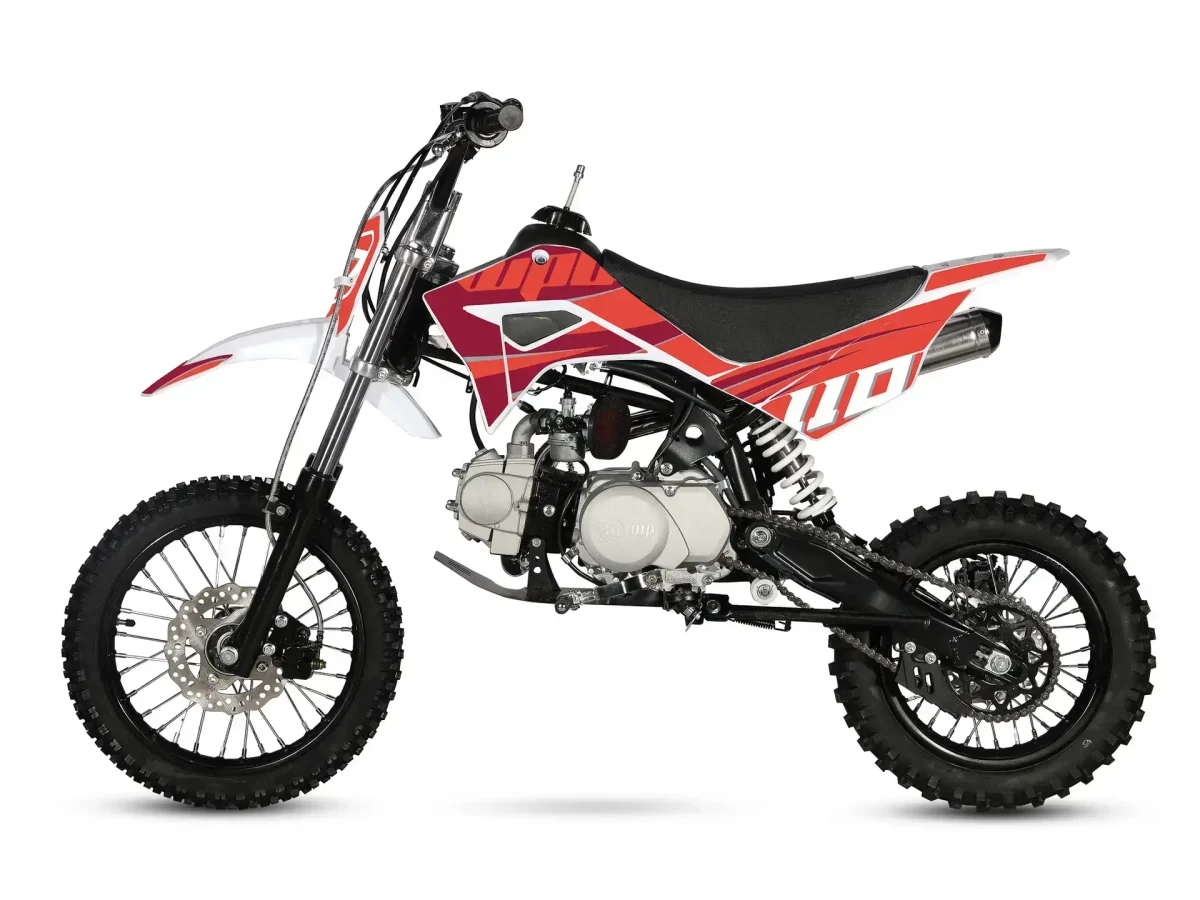

WPB Boyo 110 manual
Product details
The WPB Boyo, is notably the most famous entry-level pit bike in the world! Many thousands have been sold over the past decade, Unsurpassed quality and attention to detail, assembled with high-grade parts and manufactured at the state of the art Kayo factory. Robot welded chassis, Quality oil filled telescopic forks, YX 110 cc engine with all-up gearbox. Highly flexible PP Plastics designed to take a beating and the latest design reverse print 3M WPB graphics to finish off what is a stunning looking bike. Kick start the Boyo and open-up the throttle, the exhaust sounds incredible and the front wheel pops-up without any issue (should you want to learn to wheelie). Plenty fast enough for beginners with a top speed of around 50 mph, the bike is sharp, has fantastic geometry and stops super-quick thanks to its hydraulic disk brakes. There is a reason why the Boyo is the number 1 selling pit bike in the UK, customers keep coming back for more because the Boyo package is thrilling and unbeatable.
